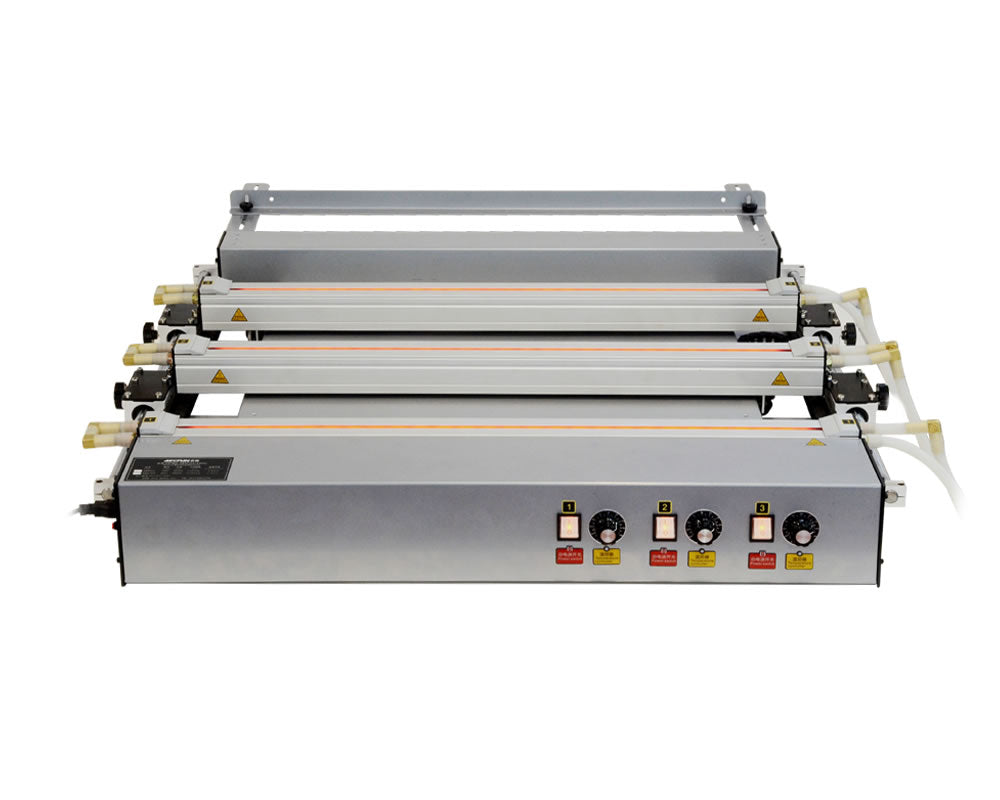

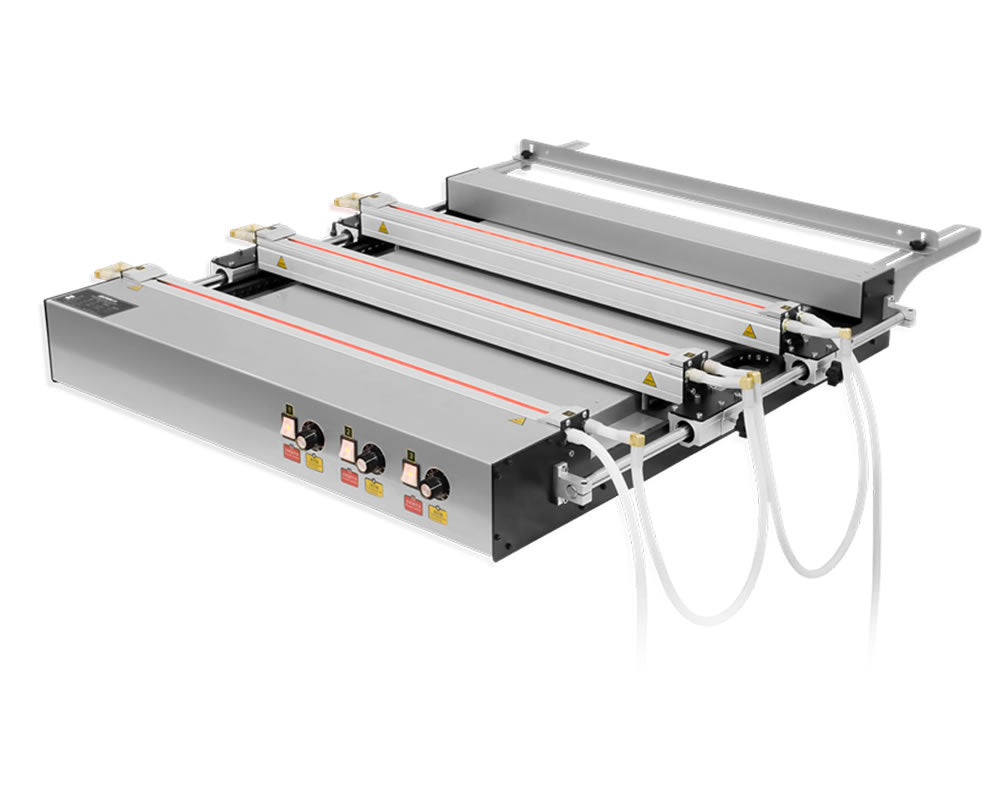

Acrylic bending machine ABM703/1303（Three Heatings)
Three heatings could work at same time，improves the working speed
Couldn't load pickup availability
Delivery
Delivery
Reviews
Product
Product Introduction

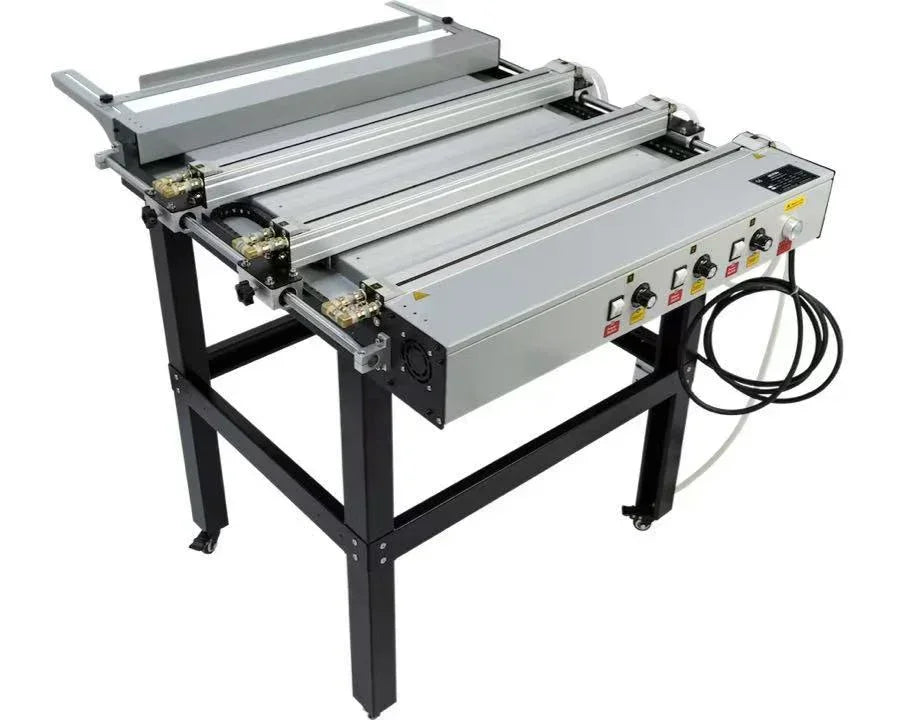

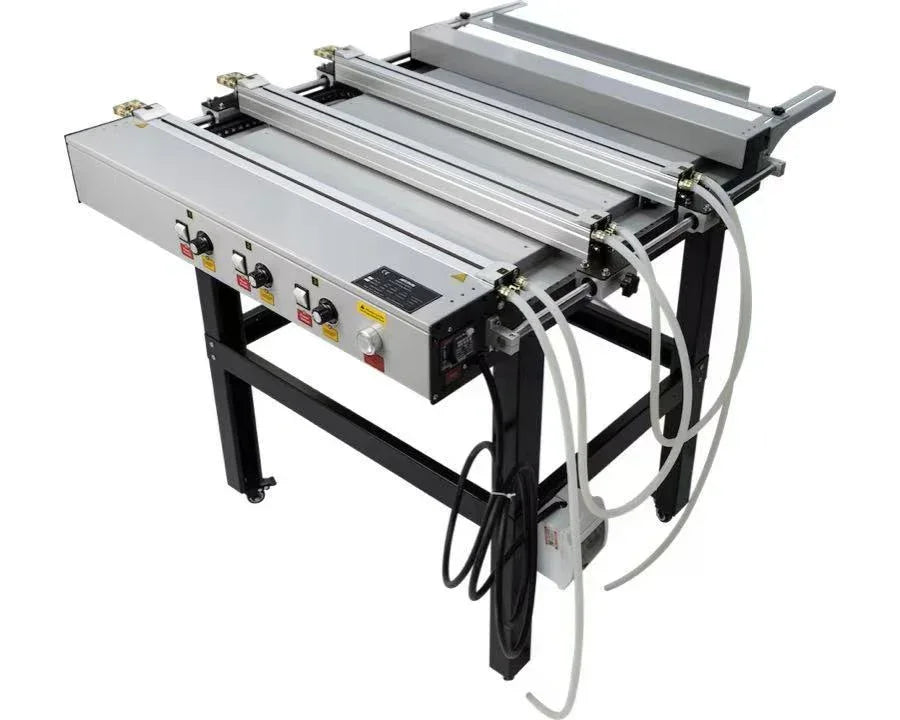

The Acrylic Bending Machines ABM703/1303 (Three Heatings) both use advanced three-stage heating technology and are equipped with adjustable width workstations. They have precise sliding adjustment spacing, three independent temperature controls, and energy-saving functions, making them efficient, versatile, energy-saving, and environmentally friendly. The ABM703 and ABM1303 have the same function, but different working sizes, with the ABM1303 having a maximum heating and bending width of 1200mm.
The three independent temperature control system allows users to heat different areas separately or simultaneously to meet different material and processing requirements, avoiding overheating or insufficient heating, making the acrylic sheet quickly soft and easy to bend. At the same time, turning off the other two heating modules at any time can save energy waste, saving costs and resources for users.
The Acrylic Bending Machines ABM703/1303 (Three Heatings) are made of high-quality materials and manufacturing processes, with a sturdy and durable body structure. The precise sliding adjustment spacing and adjustable width workstations design can meet the bending needs of acrylic sheets of different sizes and thicknesses. Equipped with an independent water-cooling module, only the area that needs to be bent is heated and softened, making the bending more accurate. Three simultaneous heating and bending improve processing efficiency and quality.
In addition, the Acrylic Bending Machines ABM703/1303 (Three Heatings) have other practical functions and features that are easy to use and maintain. In short, the Acrylic Bending Machines ABM703/1303 (Three Heatings) are efficient, versatile, energy-saving, and environmentally friendly processing equipment that can meet all your bending needs.
The acrylic bending machine was liked by many users in past 7 years. And we have two new models: ABM703 and ABM1303.

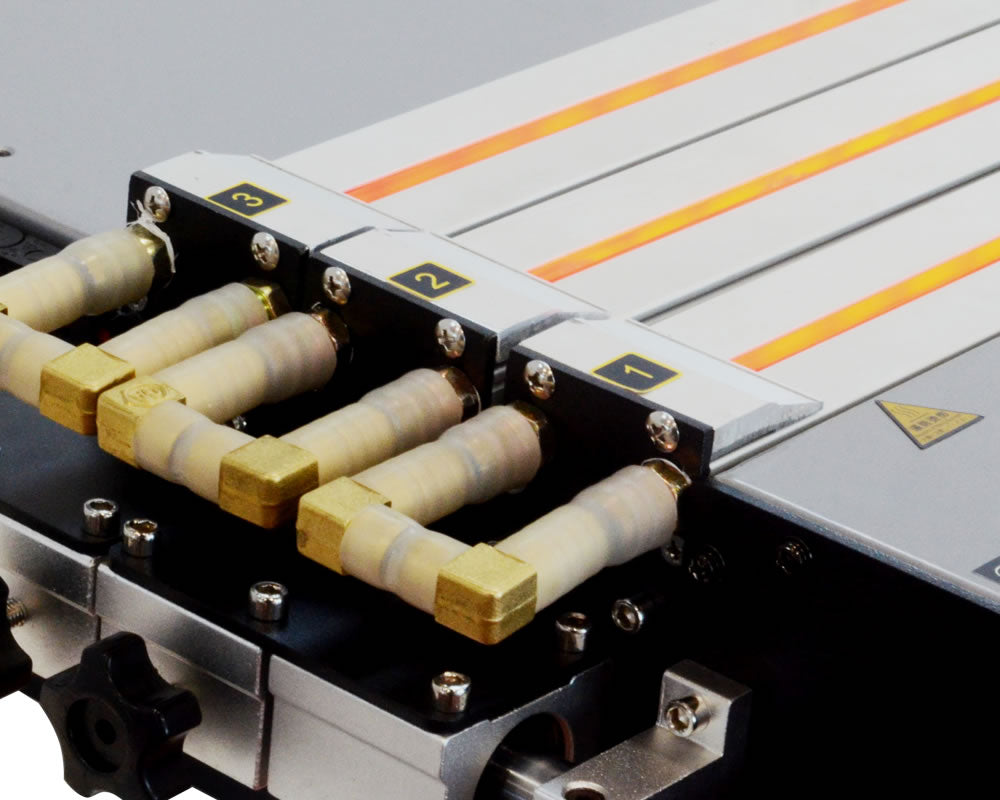

The acrylic bending machine uses module design, with 3 heating module, everyone with independent switch to control.
The three heating modules can be worked together, which accelerate the product processing speed.
With chain design, the distance between every heating module can be adjusted easily, to satisfy the different requirement of the size, enhance the using experience.
-

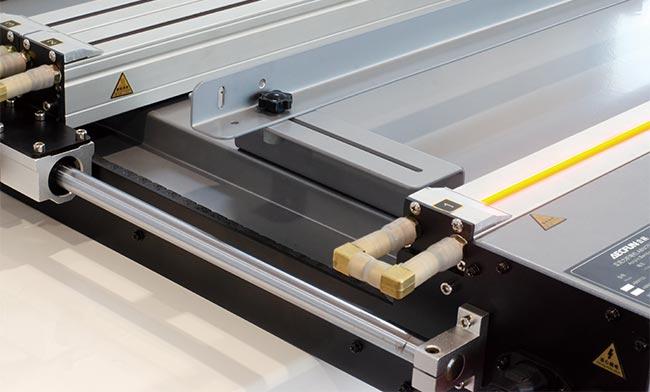

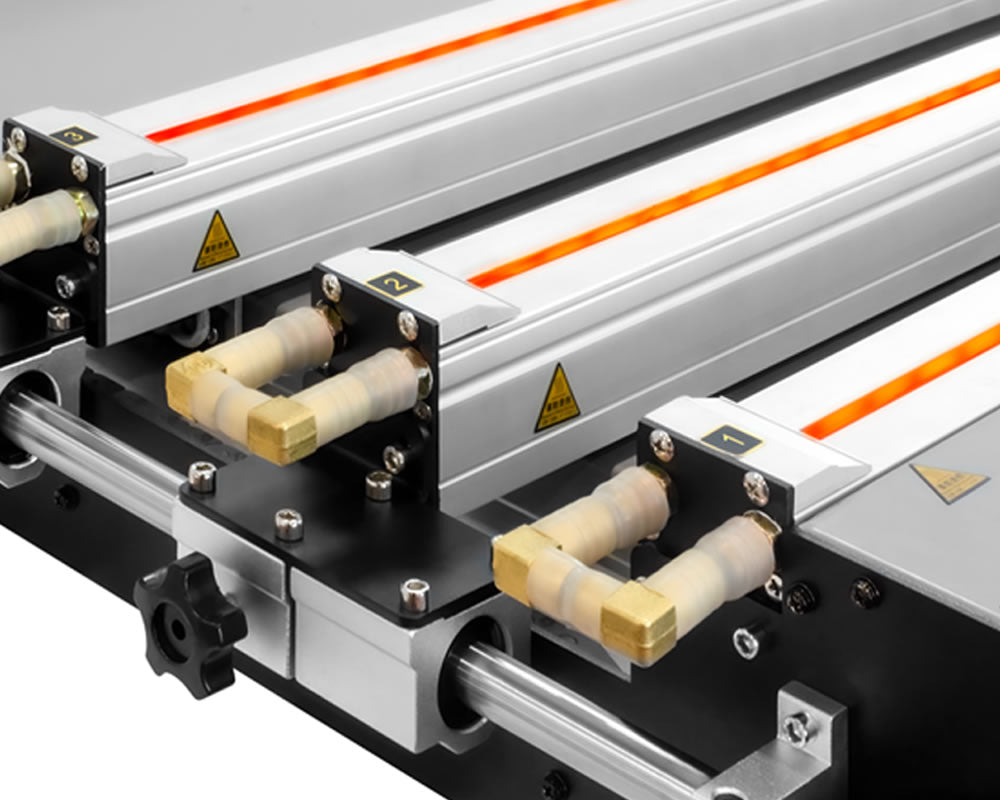

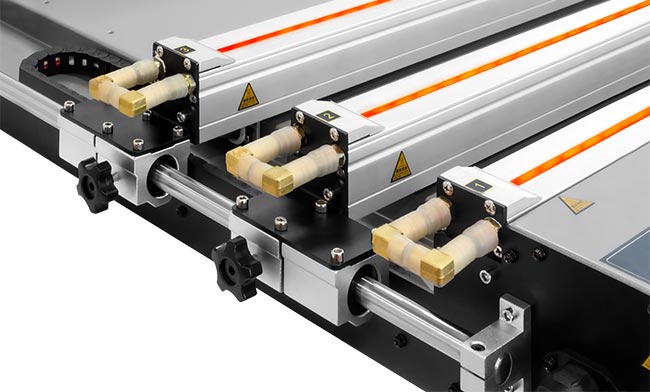

Optical Axis Guideway
Moving smoothly,the space of heatings is adjustable to satisfy different size requirement.
-

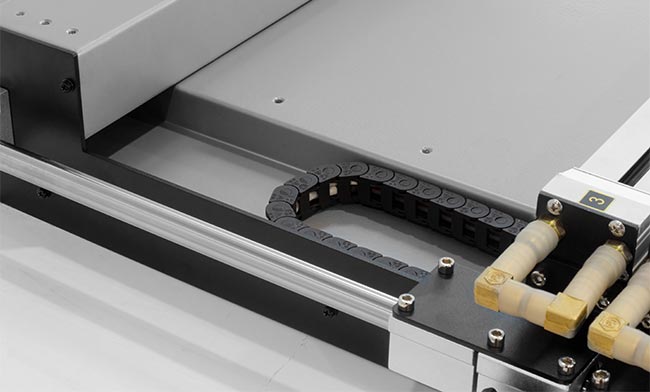

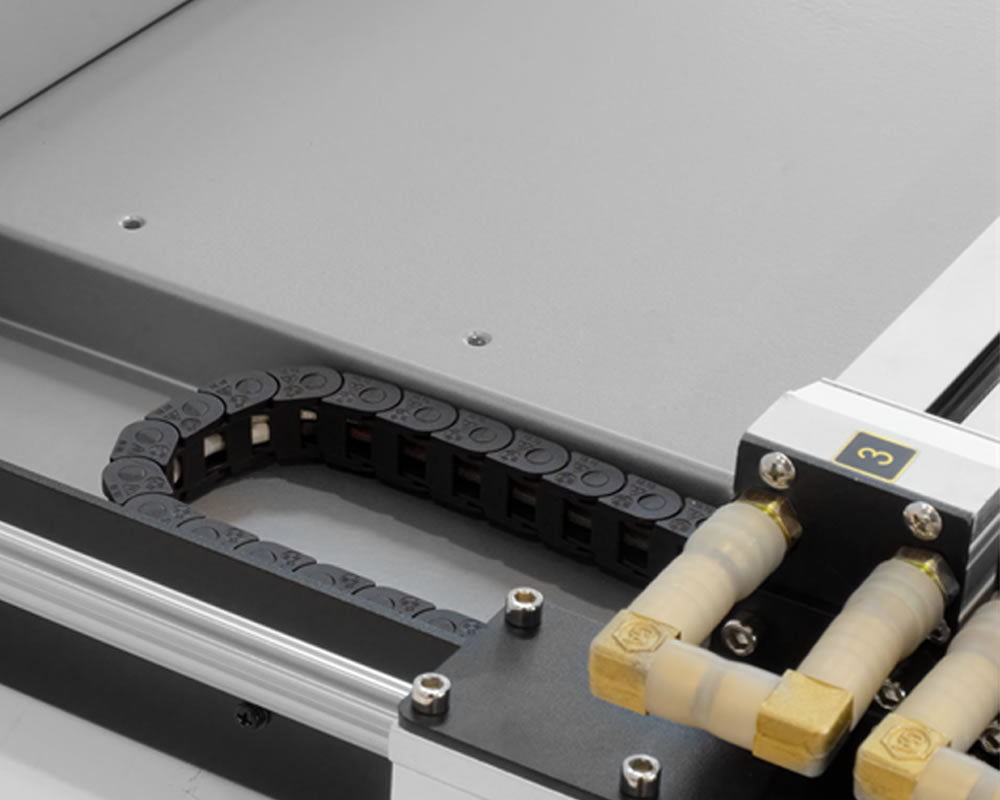

Power Supply Drag Clain
Insulation hidden power supply ensures electrical safety. -
Midpiece Locator
Except front locator,added midpiece locator,it makes single or duble heatings working mor convenient.
-

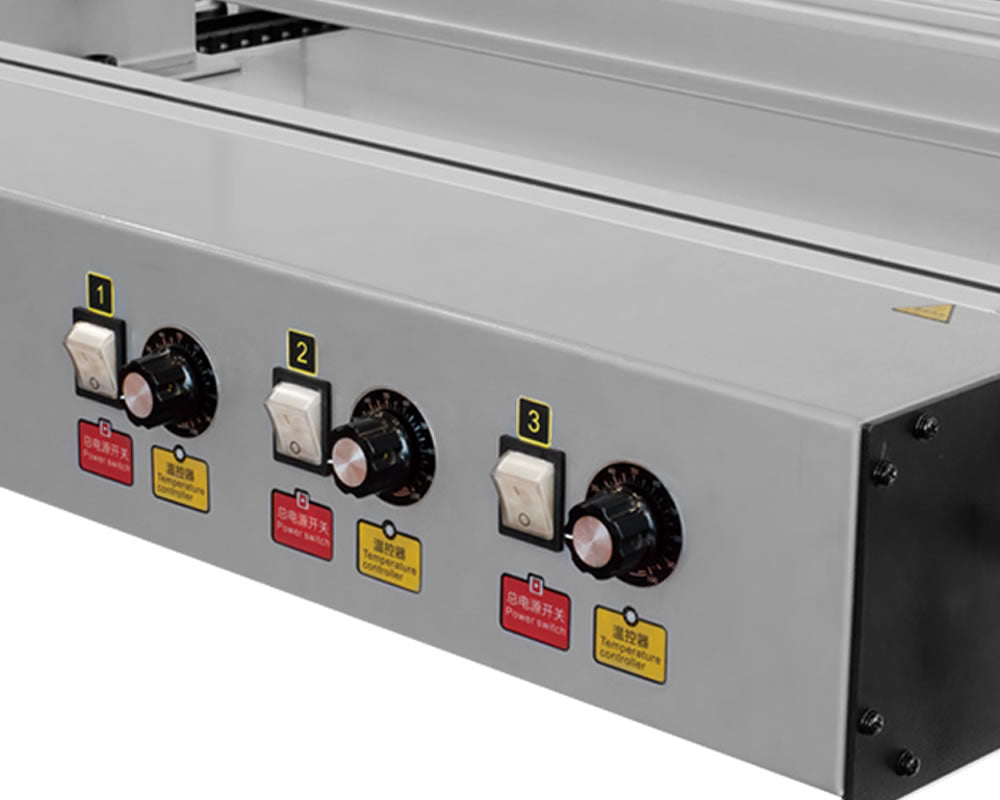

Separated Switches
Every heating has separated switches controlled,could achieve working together or independently. -

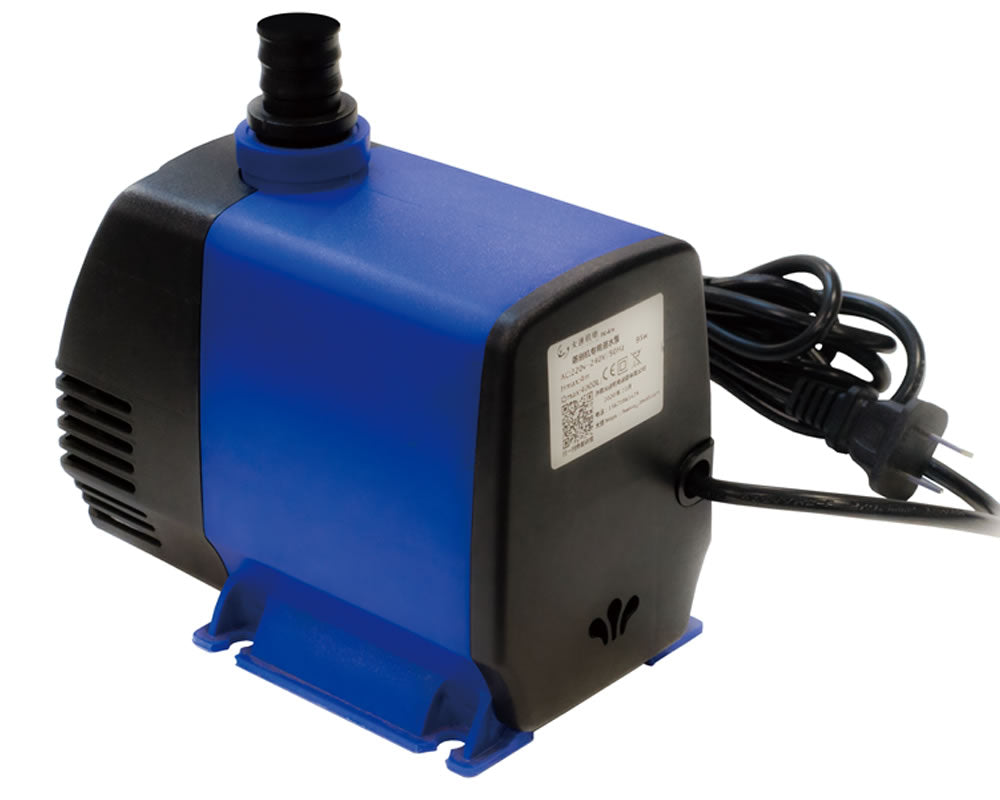

Water Pipe and Pump
Video
Parameter
| Aecfun-Acrylic Bending Machine ABM | ||
|---|---|---|
| Product Name | Acrylic Bending Machine | |
| Product Model | ABM703 | ABM1303 |
| Working Principle | Thermal Forming | Thermal Forming |
| Applicable Length | ≦650mm | ≦1250mm |
| Heating tube | 3pcs | 3pcs |
| Applicable Thickness | 1-5mm | 1-5mm |
| Input Voltage | 220V | 220V |
| Working Voltage | 220V | 220V |
| Working Power | 3000W | 4500W |
| Temperature Range | ≤600℃ | ≤600℃ |
| Product Packing | ||
| Carton Size | Carton: 1100(W) x 990(D) x 220mm(H) | Wooden: 1720(W) x 1015 (D) x 310 mm(H) |
| Packing Quantity | 1pcs/ctn | 1pcs/ctn |
| Net Weight | 50kg | 63kg |
| Gross Weight | 60kg | 96kg |
| Product Shiping Specs | ||
| 20GP(General Purpose Container) | 237pcs | 150pcs |
| 40GP(General Purpose Container) | 483pcs | 307pcs |
| 40HQ(High Cube Container) | 545pcs | 347pcs |
| Express Service | Available | Available |
| Product Maintenance | ||
| Certification | CE Certification | |
| Warranty | 365D(exclude force majeure,aritificial factors) | |
FAQ
1. Q: Is this the new acrylic bending machine?
A: Yes. Our bending machine was popular in past 7 years. According the feedback from our customers, we designed the new bending machine which with 3 heating modules, and 3 modules can be worked together. After full year’s testing, the new one start to sale from Feb. 2021.
2. Q: Does there any difference from the ABM series?
A: The new bending machine belongs to the ABM series. The ABM700/ABM1300 only have one heating tube. But new ABM703/ABM1303 with 3 heating tubes, you can get 3 ways at the same time.
3. Q: Can we bend one more ways in the same board?
A: Sure. Because this machine with 3 heating modules, specially for this requirement.
4. Q: Is 3 heating modules use the same switch to control?
A: No. Every heating tube with their own switch to control. You can choose one way, two ways or three ways, which satisfy different produce requirement.
5. Q: Can we adjust the distance between heating modules?
A: Yes. No.1 heating module is fixed, No.2 and No.3 heating modules are removable.
6. Q: Does the machine have the position adjuster?
A: Yes. Each item with 2 sets length adjuster. One in the front, the other one you can set it between heating modules. Please take care after disassembled.
7. Q: What materials can be folded?
A: Acrylic, plexiglass, PVC, PC, ABS, PP, etc.
8. Q: What is the applicable thickness?
A: 1-5mm. If your thickness >5mm, you can choose our other bending machine, check with our sales.
9. Q: What size do you have?
A: We have 2 sizes. ABM703: Available size<650mm; ABM1303: available size <1250mm
10. Q: What is the working principle of the acrylic bending machine?
A: Softening and bending of plastic plate by far Infrared heating.
11. Q: How many minutes should the user heat for 3mm?
A: About 15 seconds. The answer just fyi, different sheet from different factory maybe have the different answer.
12. Q: Is the temperature adjustable
A: Yes. You can adjust the temperature by temperature controller, ≦600℃ adjustable.
13. Q: Can we adjust the heating area?
A: No. The heating area is fixed. The available thickness is
14. Q: Can we bend cambered surface?
A: No. Our machine is specially for bending different angles. The cambered surface bending machine is still testing, you can check with our sale.
15. Q: Can we customize 2.4m bending machine?
A: No. The temperature of heating tube is limited, there is no such long size heating tube. And we are strict with our quality.
16. Q: Is the input voltage 110V?
A: Yes. Now, our voltage is optional, 110V or 220V. For example, Europe and China use 220V, North America and Japan use both 110V and 220V. Pls confirm the voltage with sale before making order.
17. Q: Can we change the plug?
A: The standard plug in our factory is: E.U plug, UK Plug, US plug and Chinese plug. If you need plug, pls send us the picture to confirm.
18. Q: How about the circulating water cooling system ?
A: The standard configuration for each item is: water pump *1, water tube *3. Pls prepare the bucket or other container by yourself for water. Full with the water, connect the machine and water pump by water tube. Put the pump into bucket and switch on to fill with the water of water tube. After long time working, the water temperature goes up. To achieve better cooling effect, pls change the water in bucket which up to 50℃。
19. Q： Do you have bucket?
A: No. The bucket’s volume is too big to carry. You can find the similar container in our daily life, like bucket, basin, or water tank, the recommend volume < 20L.
20. Q: How to cooling the water for long time working?
A: You can use a big water tank, or put some ice to cool the water. Or, you can buy the Cooling-water machine if possible.
21. Q: Does the machine have fans?
A: No. The machine circuit is independent, so there is no need to use the fan to inner cool.
22. Q: How about the warranty?
A: 12 months. Main warranty components: temperature control circuit board.
23. Q: Can i but more water tube?
A: Yes. The working time for each tube is 4000 hours. Each item have 3 heating tubes. And every bending machine have an extra heating tube for replacement for free before delivery. You can buy the heating tube according to your requirement.
24. Q: Can i buy more water pump?
A: Yes.
25. Q: Where is the replacement heating tube in Carton?
A: This heating tube is packed in an aluminium pipe(random color: black or silver). The heating tube is fragile, pls take care while taking out.
26. Q: How to replace the heating tube?
A: Plug off and make sure the heating tube is cooling completely. Open metal clamp beside heating tube, take out the broken one, and unlock the wire, replace the new heating tube as before. We can show you the videos and pictures fyi.
27. Q: Do you have CE certification?
A: Yes,we have CE certification.
