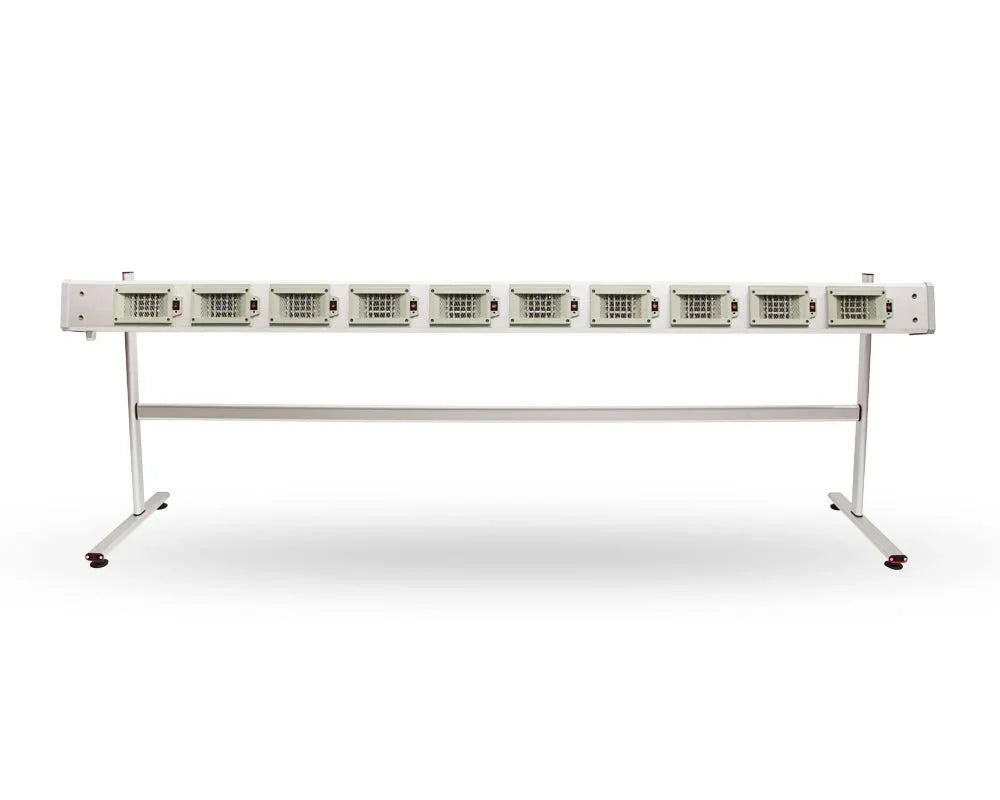

Media Dryer H6
PTC heating ,high efficiency,wind and hot air in one
Couldn't load pickup availability
Delivery
Delivery
Reviews
Product
Product Introduction

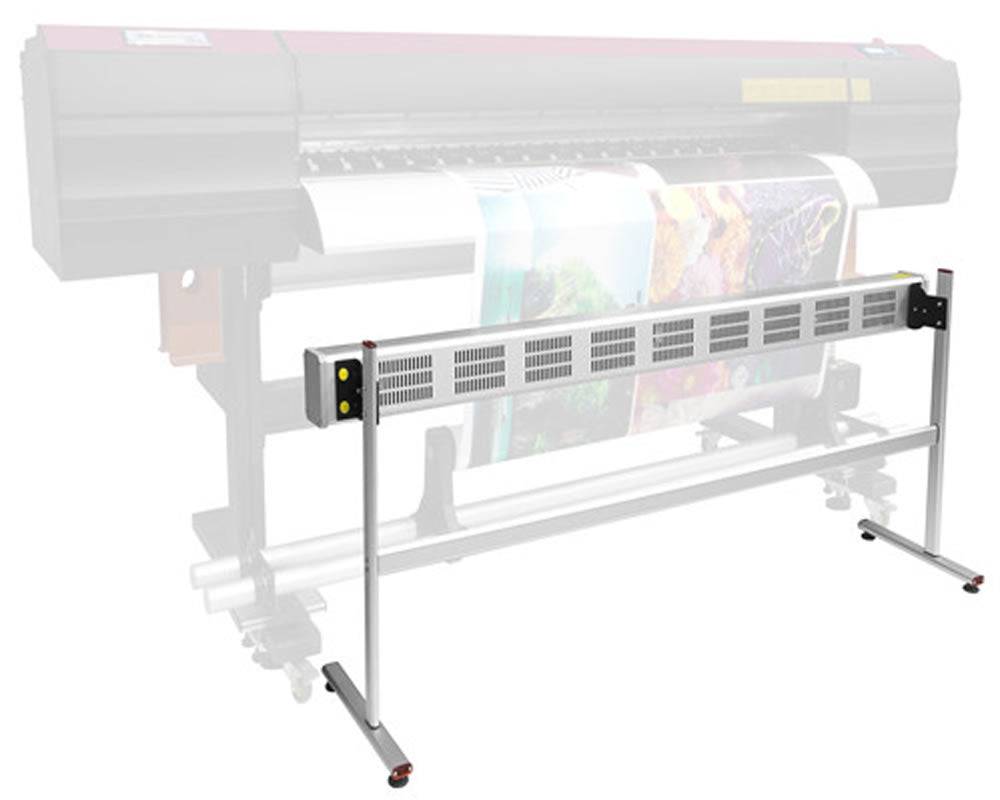

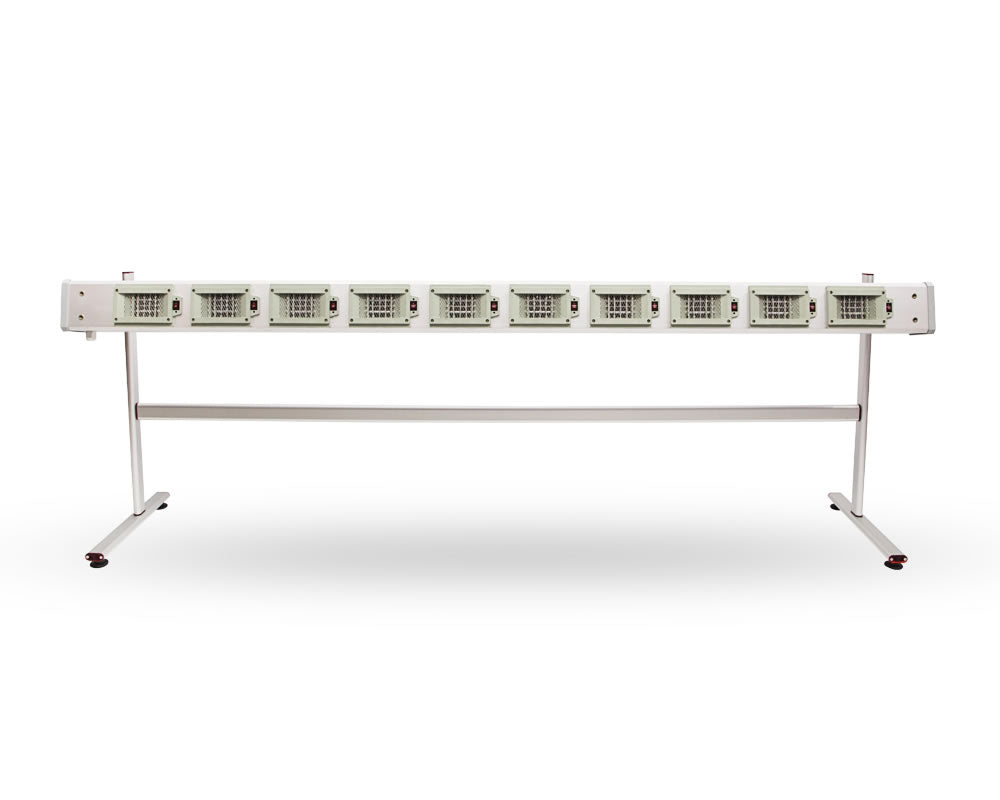

The printer dryer H6 can dry different media, equipped with heating module, with high transport safety. Constant temperature control, low power consumption, even exhaust, long lifetime.
-

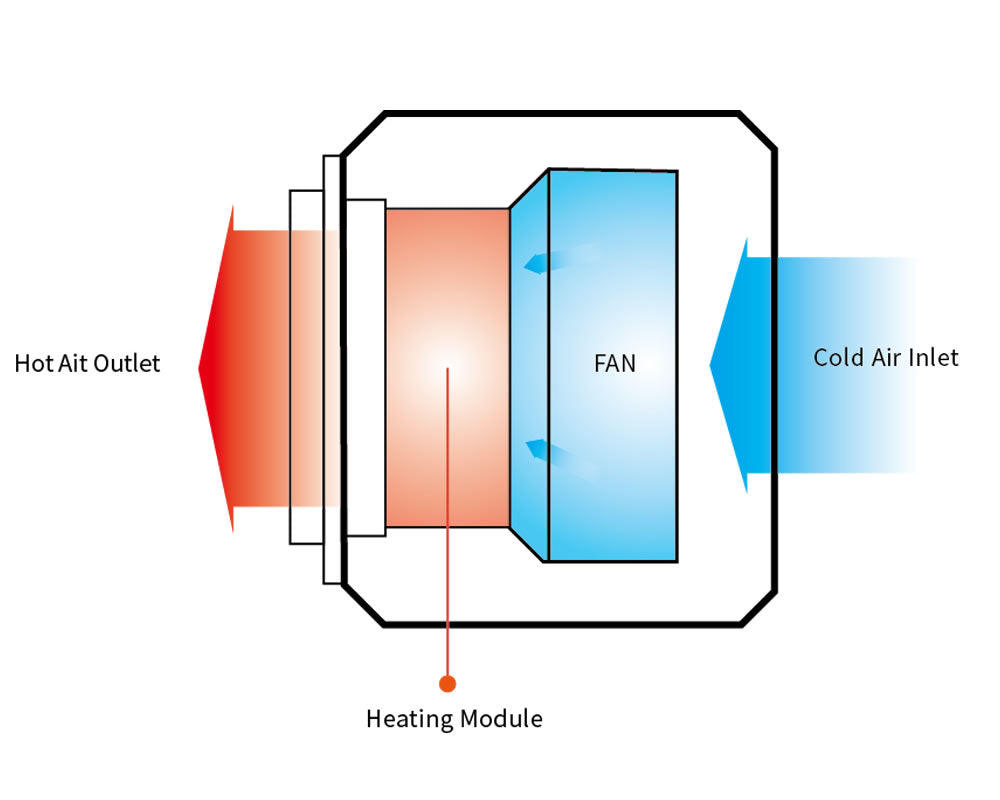

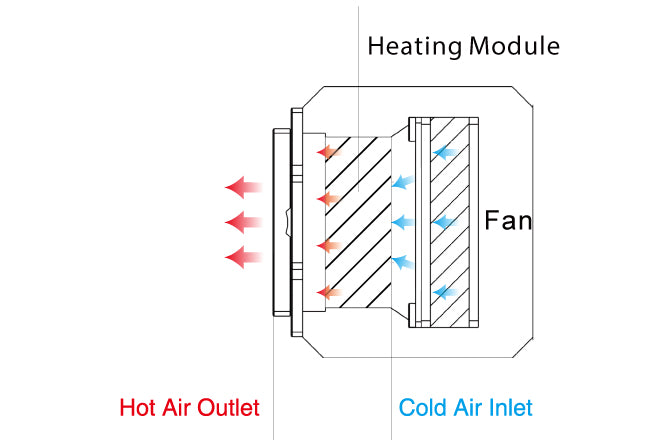

Heating principle
The Air is drawn into the heating chamber from the inlet, heated by the PTC heating module inside, and then exits from the air outlet.
-

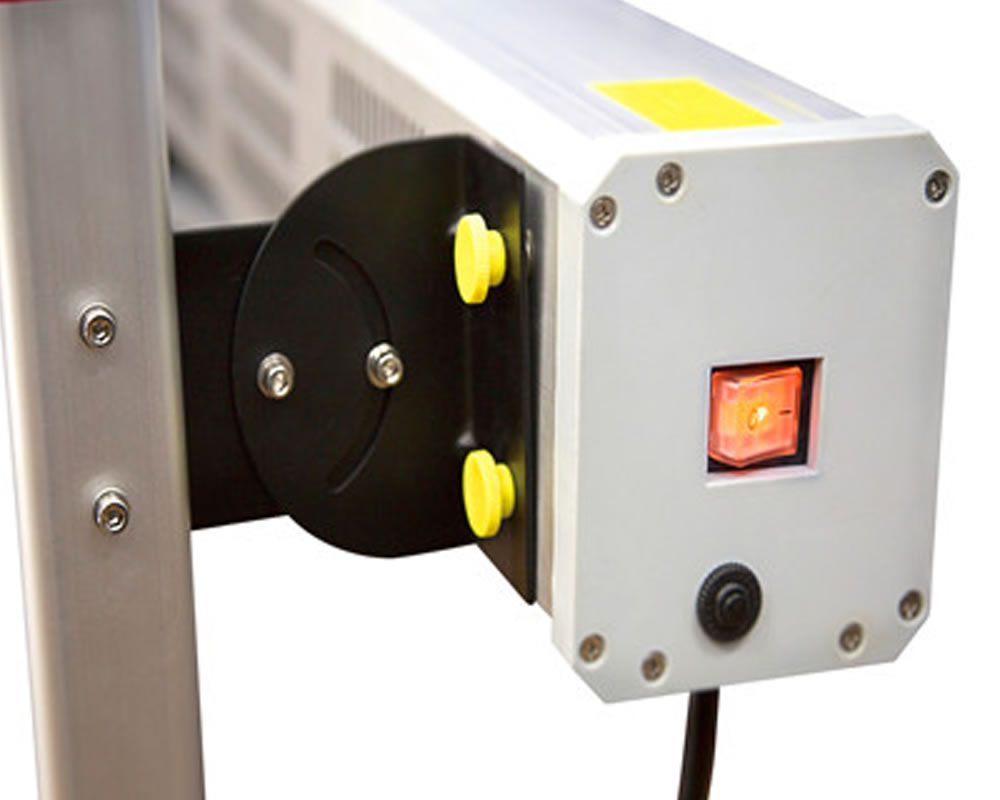

Thermostat
The temperature of the hot air can be adjusted. The thermostat keeps the temperature of the hot air constant.

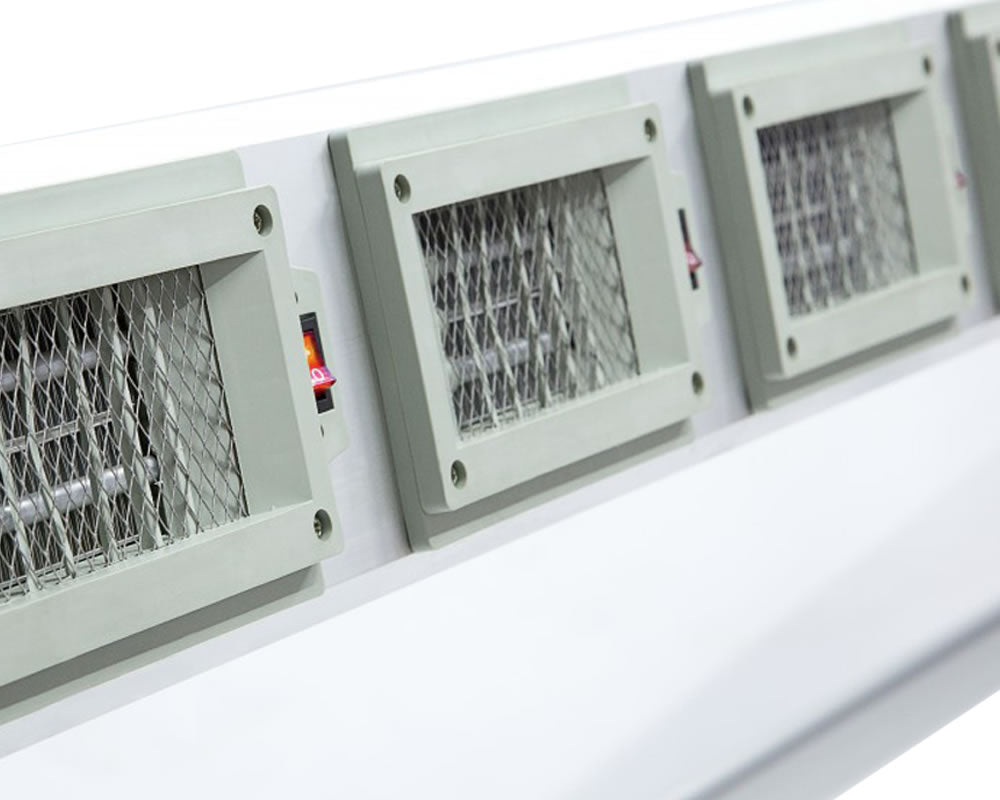

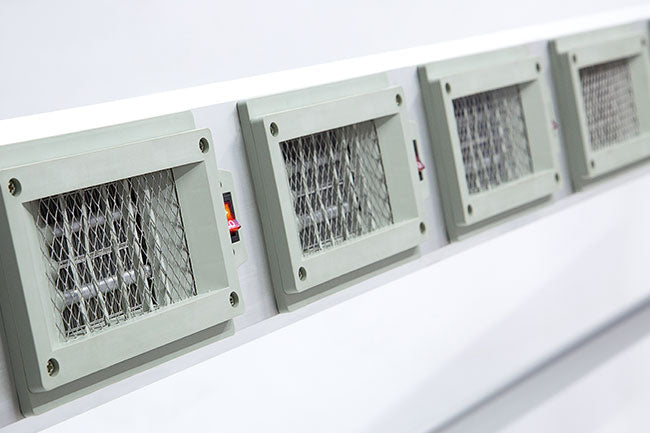

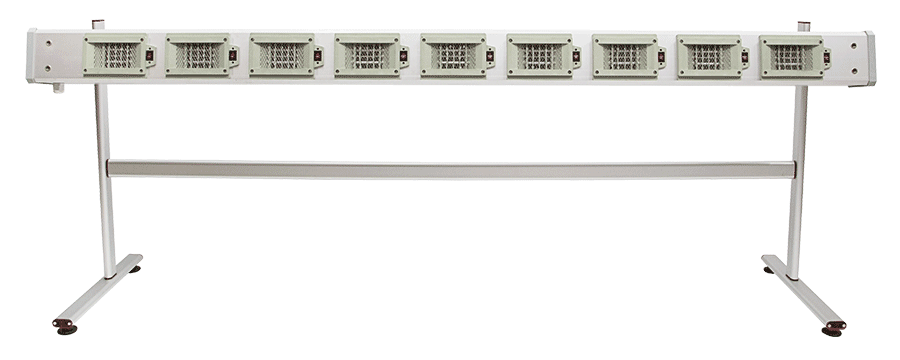

The dense air outlet ensures a uniform airflow.
-
Outlet Cold/Hot Air

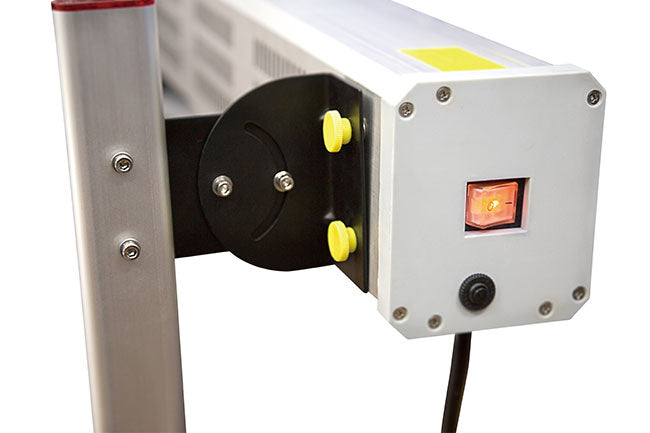

The switch can control whether the machine discharges cold or hot air.
-

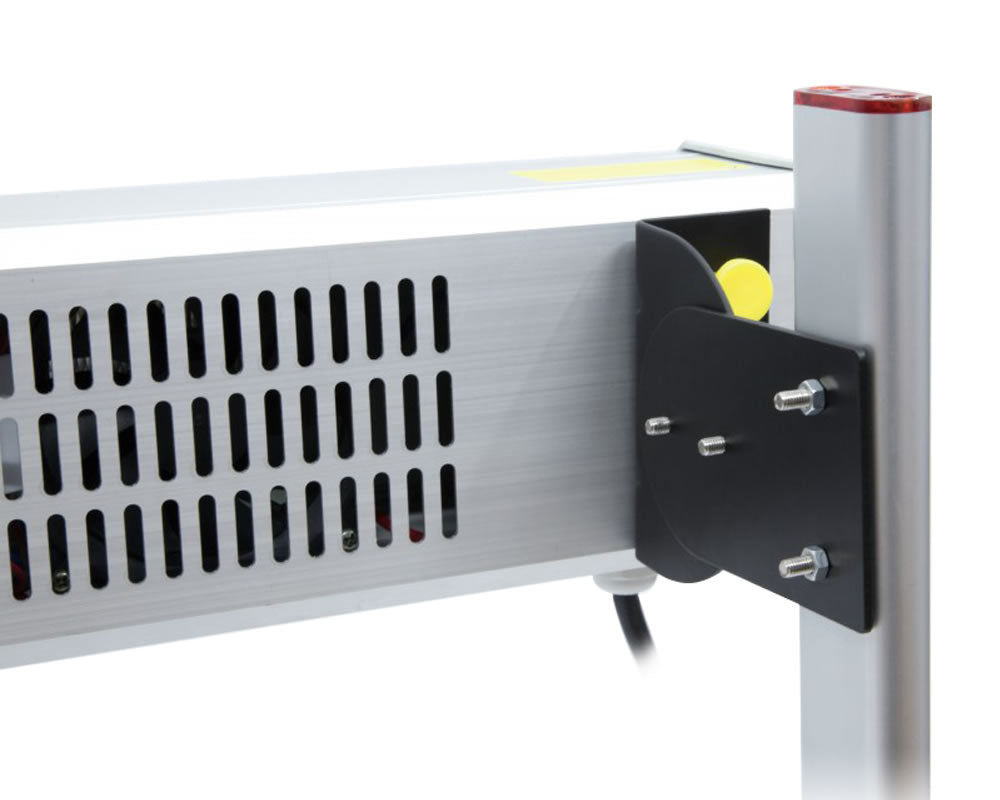

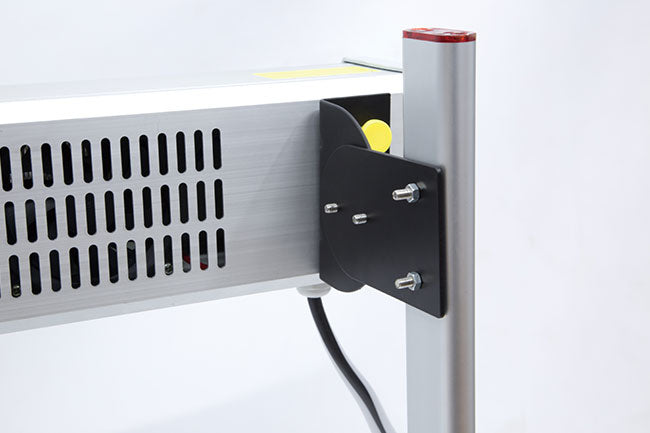

Inlet
Elegant design of inlet make printer dryer fashionable and pratical.
-

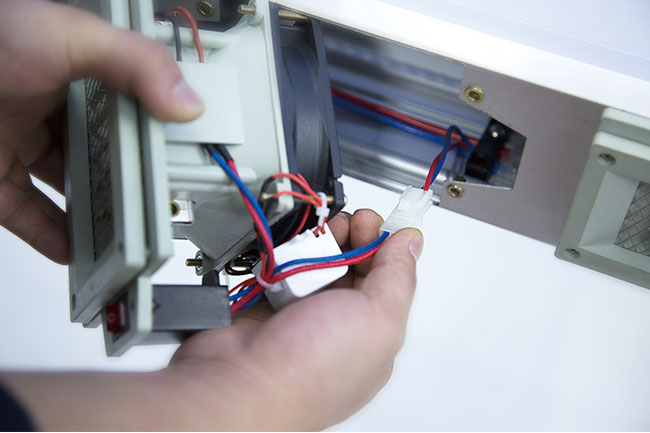

Heating model
The heating module can be disassembled independently for easy cleaning and maintenance.
Video
Parameter
| Aecfun-Media Dryer H6 | |
|---|---|
| Product Name | Media Dryer |
| Product Model | H6 |
| Applicable Width | 54"/64"(1300/1600) |
| Working Pattern | Wind&heat in-one |
| Input Voltage | 240V |
| Working Voltage | 240V |
| Working Power | 1600/2000W |
| Temperature | 45-50℃ |
| Product Packing | |
| Carton Size | Carton:54"-1580(W)x190(D)x265mm(H) 64"-1950(W)x190(D)x265mm(H) |
| Packing Quantity | 1pcs/cnt |
| Net Weight | 10/12kg |
| Gross Weight | 12/14kg |
| Product Shiping Specs | |
| 20GP(General Purpose Container) | 54"-96pcs/ 64"-72pcs |
| 40GP(General Purpose Container) | 54"-204pcs/ 64"-180pcs |
| 40HQ(High Cube Container) | 54"-238pcs/ 64"-210pcs |
| Express Service | Available |
| Product Maintenance | |
| Certification | CE Certification |
| Warranty | 365D(exclude force majeure,aritificial factors) |
FAQ
1. Q: What is the heating theory of H6?
A: It is heated by PTC ceramic heating module.
2. Q: How many sizes does it have?
A: 3 sizes now: 54” -1300mm /64”-1600mm.
3. Q: How many outlets for each size?
A: 7pcs outlets is for 54”, 9pcs for 64”.
4. Q: What about the working voltage?
A: Working voltage: 220v; Input voltage: 220v. Three plugs optional: Chinese standard, European standard, British standard.
5. Q: How about the heating power?
A: 54”: 1600W; 64”:2000W.
6.Q: How about the temperature?
A:Temperature is constant.
7.Q: How to connect with printer?
A: Independent stand, no need to connect with printer.
8.Q: How about the warranty?
A:12 months. Warranty part: heating module.
9. Q:What’s the consumable part?
A:Heating modules, fans.
10.Q: Are the heating module and air fan easy for replacing?
A: The heating module can be disassembled independently, easy to be replaced.
11. Q:Do you have CE certification?
A: Yes, we have.
