（ NEW ! ）Acrylic Bending Machine ABM320
Working Area: 320 mm. For bending the plastic plate and make sign holders
Local customs duties are included.
Couldn't load pickup availability
Delivery
Delivery
Reviews
Product
-
Product introduction

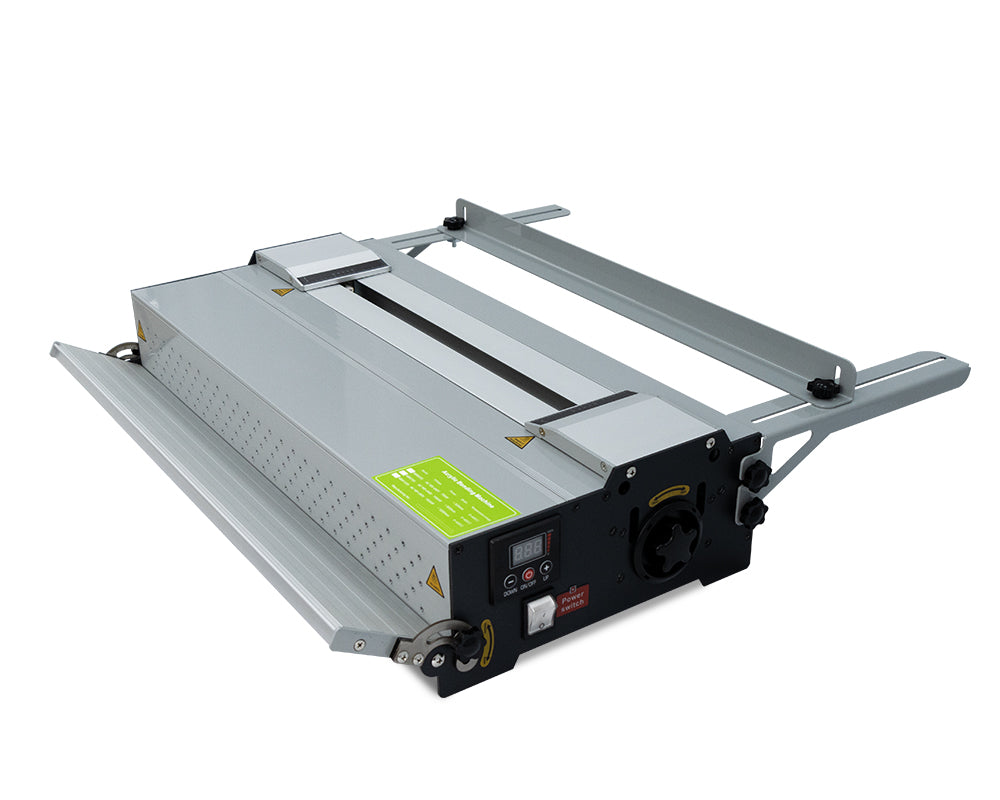

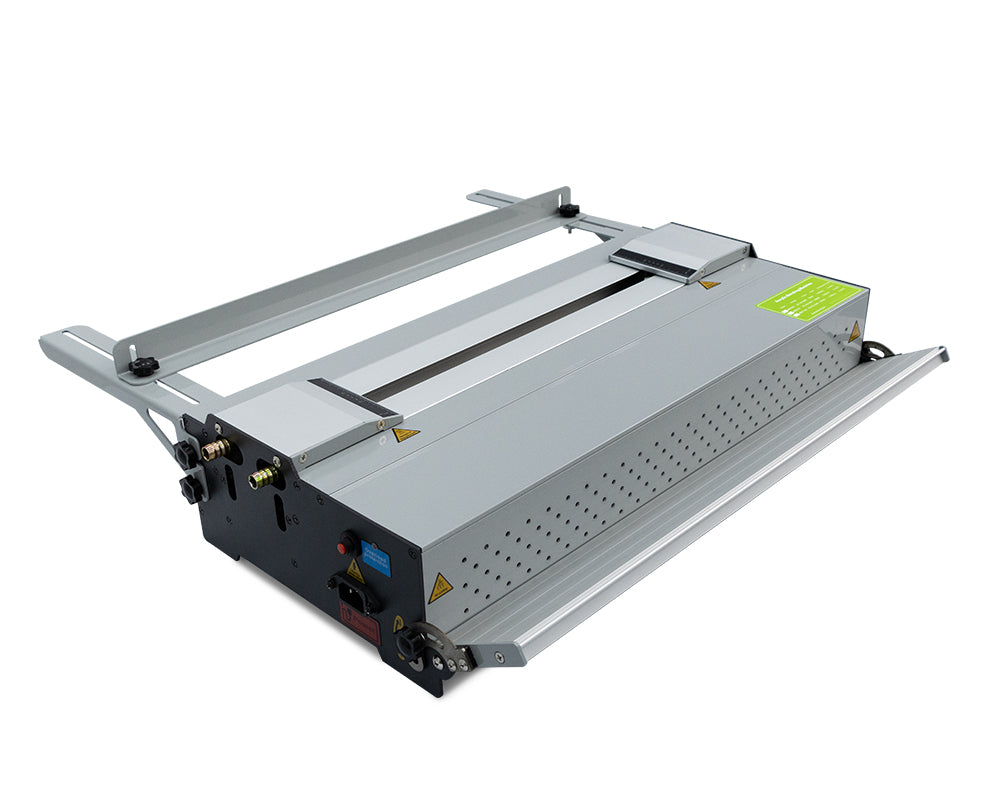

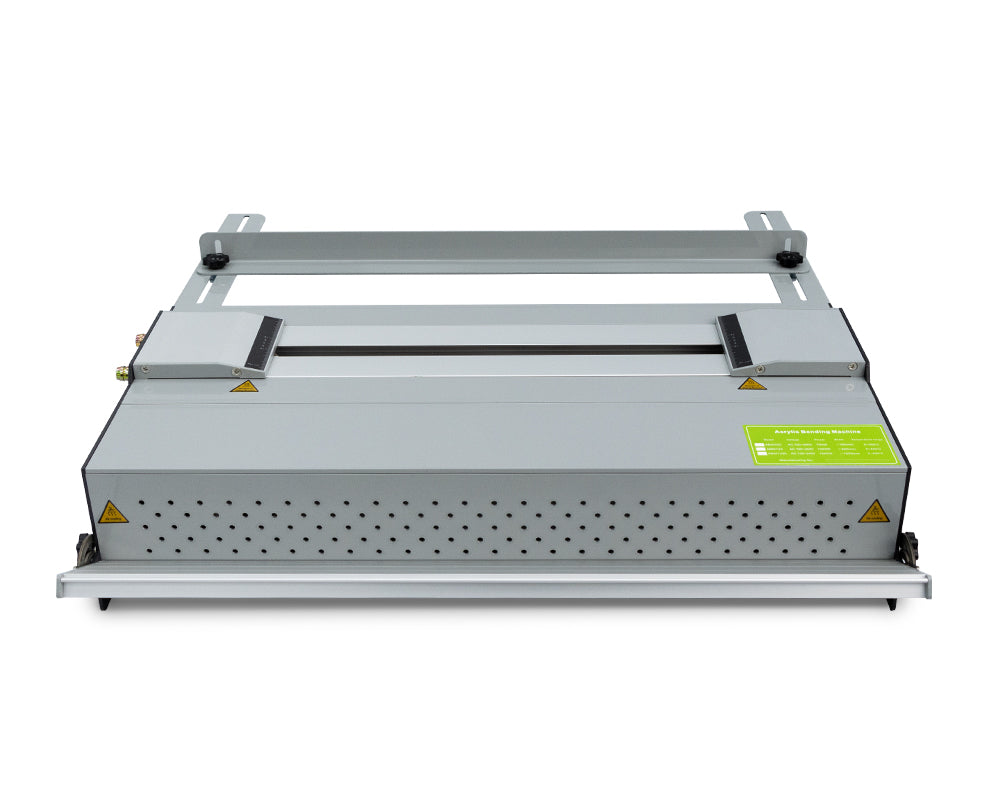

Acrylic Bending Machine ABM320 is a high-efficiency device integrating storage innovation and CNC technology, designed to bend acrylic sheets into different shapes and angles. It achieves professional-grade precision while remaining accessible to all users.It brings your numerous creative ideas to life.
Perspex bending machine is equipped with the following functions:
Compared to the legacy bending machines, the new model implements numerous optimizations in both appearance and functionality.ABM320 incorporates ventilation outlets integrated with water-circulation cooling tubes to prevent overheating and explosion of heating elements.The expandable bottom storage compartment innovatively integrates underbody space, significantly enhancing parts management efficiency.The temperature control has been upgraded from mechanical knobs to a digital touchscreen interface, enabling precise temperature setting.Structurally integrated design enhances aesthetics and storage efficiency.
All in all ,Building on the legacy of reliability and versatility, the ABM320 redefines efficiency benchmarks for thermal bending equipment through three breakthroughs: ultra-rapid cooling, storage aesthetics, and intelligent CNC.It functions not merely as production equipment, but ultimately as a strategic asset driving creative ideas into tangible outcomes.
Acrylic Bending Machine ABM320 is made of high-quality materials and manufacturing technology, with a sturdy and durable body structure. Its robust structure ensures long-term use.The ABM320 having a maximum bending width of 320mm.
Temperature control function, enables precise and responsive heating adjustments via the digital touchscreen, ensuring acrylic sheets reach their optimal bending temperature.
Heating width adjustment function, which ensures that sheets of different thicknesses are heated to the optimal bending width, thereby ensuring a high degree of accuracy in the bending effect.
Adjustable bending angle positioning function, which helps users accurately bend acrylic sheets to different angles.
Heating position positioning function, which can place the sheet on a preset positioning device to ensure that the heating position of each sheet is consistent when mass producing, ensuring consistent product quality.
Water cooling function, which cools the parts that do not need heating with water, ensuring that only the parts that need to be heated are softened, and other parts are not affected by temperature.
Plexiglass bender is widely used in various industries, such as signs, displays, and manufacturing, and can be used to make various products such as acrylic display racks, signs, and information boards. Its highly accurate bending effect allows users to easily create beautiful and practical products.
In addition, Acrylic Sheet Bender ABM320 can also be used to bend other materials such as PC sheets, PP sheets, PE sheets, PS sheets, PET sheets, and PVC sheets, making it an essential multi-functional tool in the production and manufacturing process. -
DIY creativity
You can realize any of your DIY ideas.
-
Laboratory
It is used to bend plastic to make simple laboratory equipment. -
Billboard
It is used to bend acrylic for billboard in front of hotel, shop, mall, etc.
-
Display product
It is used to bend acrylic for displaying products such as appliances, mobile phones, cosmetics, magazines, shoes, etc. -

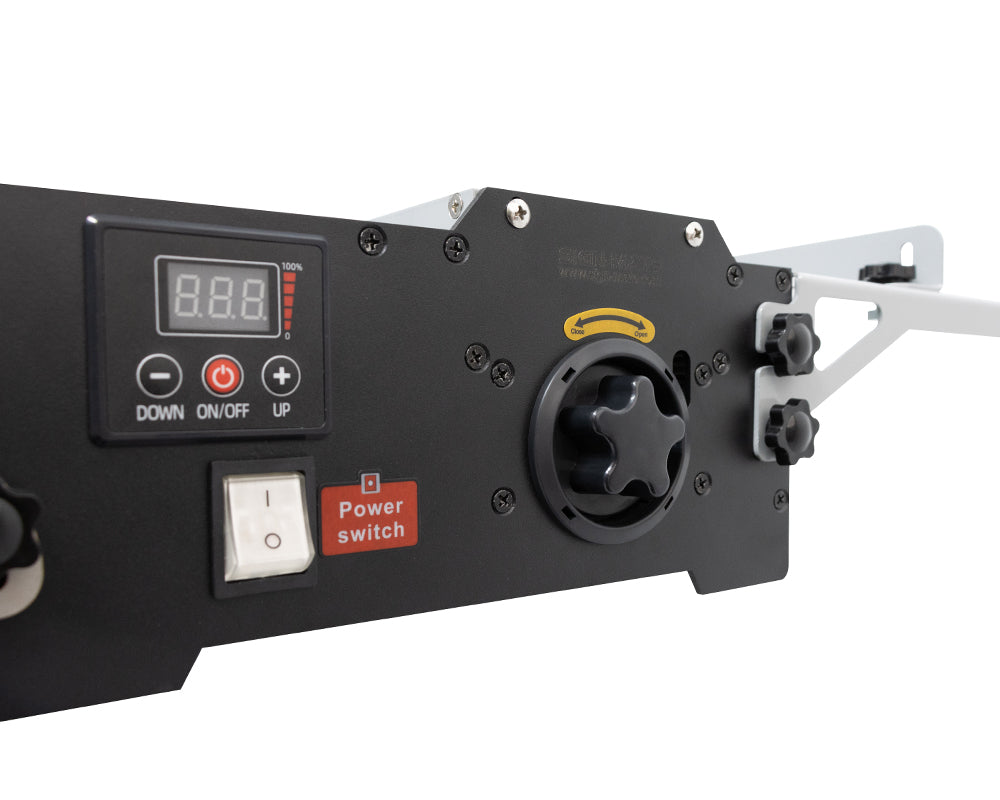

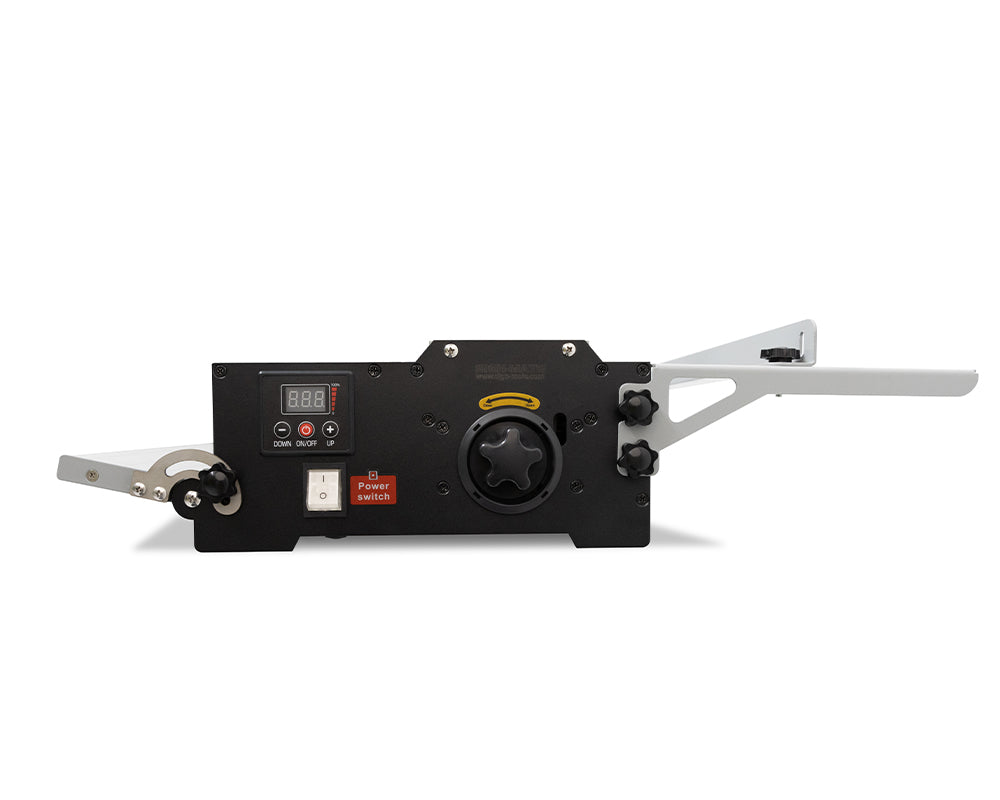

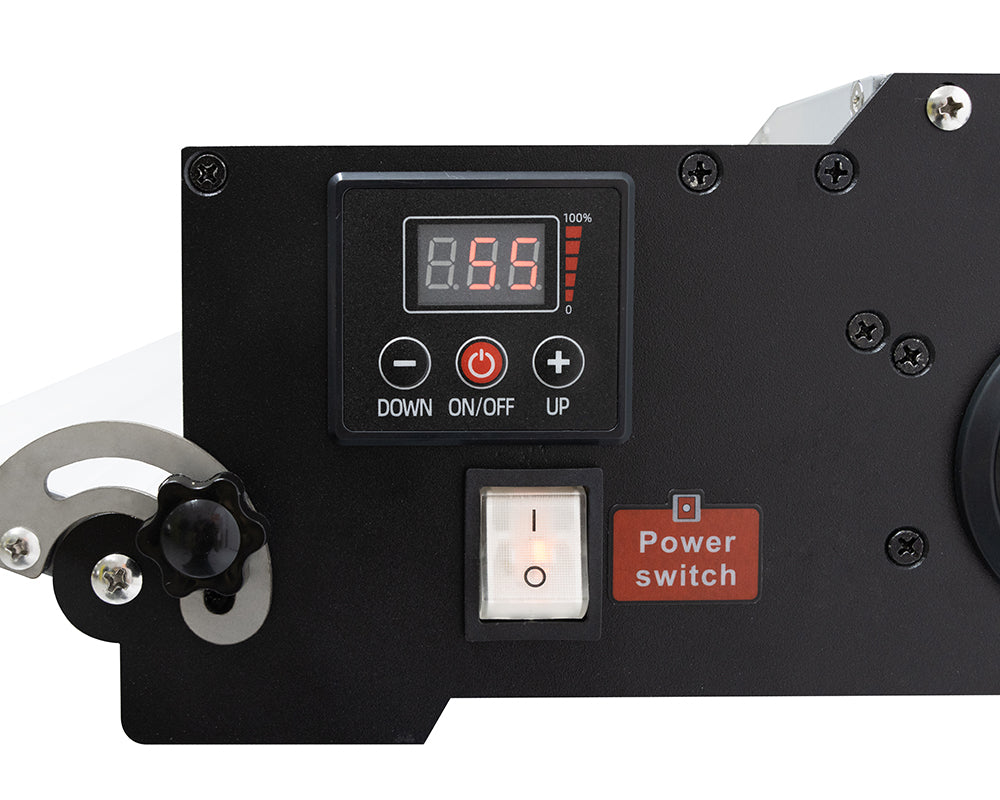

Numerical control screen temperature adjustment
You can adjust the temperature percentage via the numerical control screen, and the maximum temperature can reach 600℃.
-
Water cooling device
Water in the tank is pumped to cool the heating tube to prevent it from being overheated and damaged.It ensures fast cooling and increases the life of the machine. -

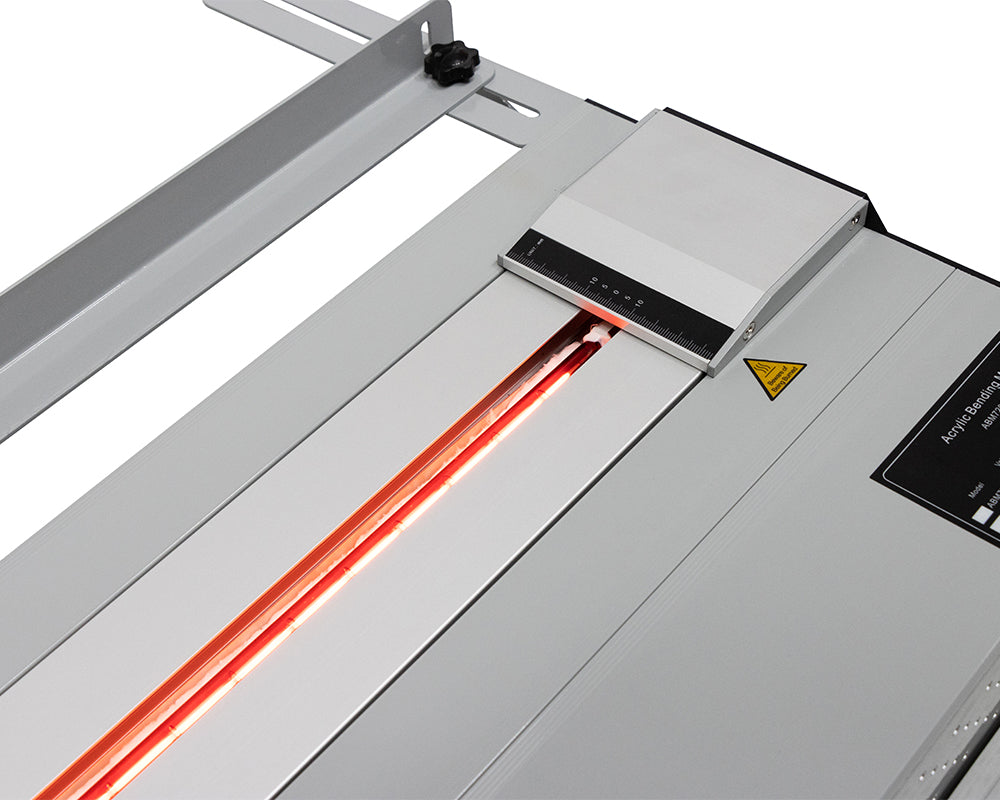

Adjustable heating gap width
According to different material and thickness of sheet, the gap width can be adjustable.The range of width is 0-20mm.
-
Standard configuration
Water pump, water pipe and spare heating pipe. -

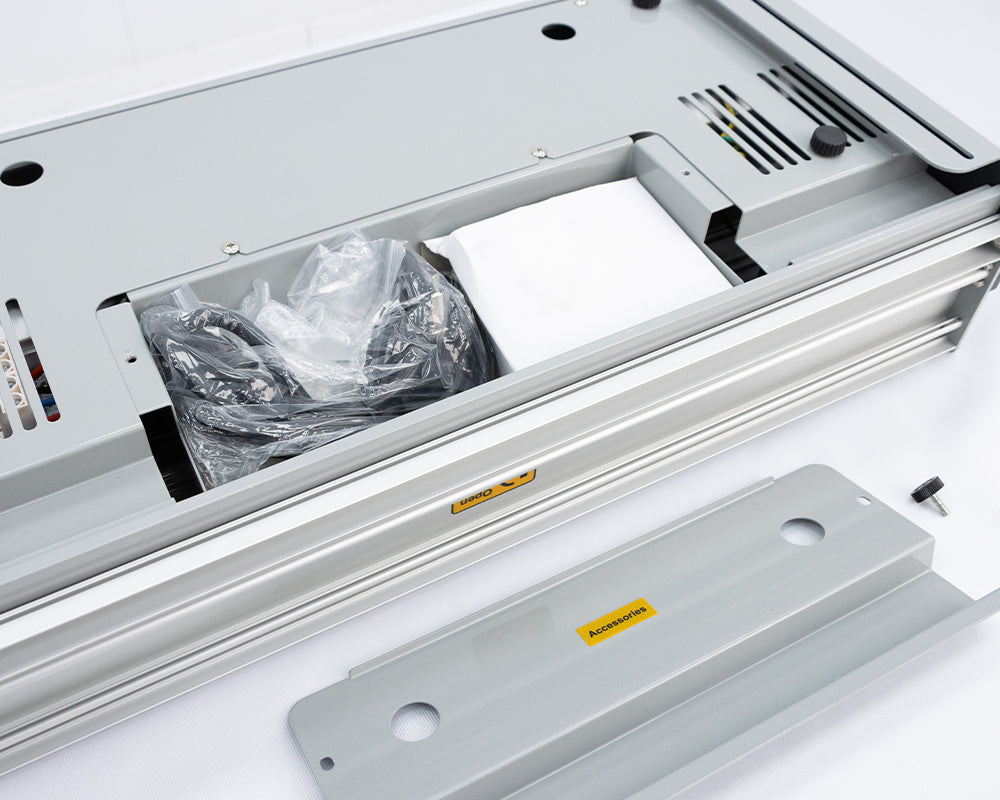

Storage
The storage space at the bottom of the machine body takes up no space and makes storage more convenient.
-
Same bended position
Adjust the length of the baffle to make the bended position of each acrylic plate the same. This feature can make the product more standardized and make manufacture more convenient. -

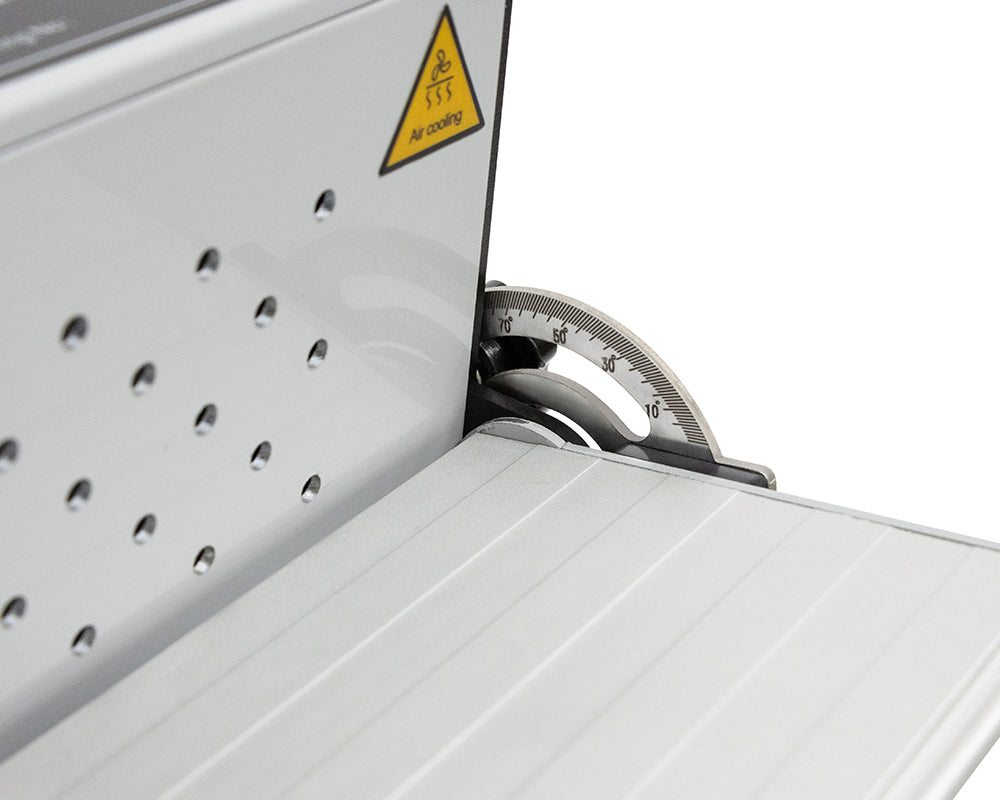

Same bended angle
The angle formed by the baffle and the back of the machine allows the bended angle of each plastic sheet to be the same. This feature can make the product more standardized and make manufacture more convenient.
-
Integrated storage
It is more convenient to store, with integrated storage, which can effectively prevent accessories from being lost and save more space. -
Packaging
The packaging with special pearl cotton and thickened hard cartons will well protect the products from damage during transportation.
Parameter
| Sign-mate Acrylic Bending Machine ABM | ||
|---|---|---|
| Product Name | Acrylic Bending Machine | |
| Product Model | ABM320 | |
| Working Principle | Thermal Forming | |
| Applicable Length | ≤320mm | |
| Heating tube | 2pcs | |
| Applicable Thickness | 1-5mm | |
| Input Voltage | AC200-240V | |
| Working Voltage | AC200-240V | |
| Working Power | 700W | |
| Temperature Range | ≤600℃ | |
| Product Maintenance | ||
| Certification | CE Certification | |
| Warranty | 365D(exclude force majeure,aritificial factors) | |
FAQ
1.Q:What is the function of the air outlet design?
A:When acrylic is heated, it becomes soft. At this point, direct blowing through the air outlet rapidly lowers the temperature of the bent part, allowing the molecular structure to solidify quickly at the set angle.In addition, the effect will be better when the air outlet is used in combination with the angle positioning plate.
2.Q: What kind of material can it bend? What’s the applicable thickness?
A: Plastic plate like Acrylic, Plexiglas, PVC, PC,ABS, PP and so on ...etc. The applicable thickness is 1-10mm.
3. Q: What’s the working theory of acrylic bending machine?
A: Softening and bending of plastic plate by far Infrared heating, shaped by hand or any mould.
4. Q: How many minutes should the user heat for 3mm sheet?
A: About 15 seconds.
5. Q: Can the machine heat multiple parts at same time?
A: No. Our machine has only one heating lamp, could heat and bend only one line at a time.
6. Q: Is the temperature adjustable?
A:The numerical control screen displays 0-100%, which can be adjusted according to your needs.
7. Q:Is the heating area adjustable?
A: Yes, according to sheet thickness and real requirement, heating range in 0-20mm.Generally, the sheet is thicker, the heating area need bigger. 3mm thickness sheet need heating width at least 8mm. 8mm thickness sheet need 20mm heating width.
8. Q: Does the machine have adjuster?
A: Yes, it has length position adjuster and angle adjuster in standard.
9. Q: Can the mahine bend big arc?
A: No. Is has only single heating lamp, main fuction is to bend angle. It is suggested using oven heating to make big arc.
10. Q: There is white foam under heating lamp. Does it need to take out before using the machine?
A: No. The object is for protecting the heating lamp and to insulated heating during working. It is heat-resisting material.
11. Q: Does it have input voltage in 110V?
A: Yes. Two voltages are available, 220V and 110V. Generally, some European countries and China is in 220V, North America and Japan is 110V. Pls confirm with sales before placing the order.
12. Q: Can the plug be changed to any countries’ standard?
A: Normal plug has 4version, E.U plug, British plug, U.S plug, and C.N plug. If indeed has other demand, pls send exact picture to sales for further confirmation. If we could buy from Chinese market, we could change as your demand.
13. Q: How does the water cooling system working?
A: The machine has 1pc water pump and 2pcs water pipes in standard. To fullfill the water in any water tank or bucket, connect the pipes with water pump, and put the water pump into the water, then turn on the switch. The water pump will push the water into machine inner through the pipes. The water temperature will rise during the working time. To acheive better cooling effect, please exchange the water when you feel the water is heated by your hand or the water temperature is up to 50℃.
14. Q: Is the water tank included?
A: No. User could use water tank or bucket with capacity ≥20L.
15. Q: The water temperature will be heated after long time work. Is there any method to reduce the water exchange time?
A: It is suggested to use big water tank or bucket. Or put some ice into the water to slow down water heated speed.
16. Q: Does the machine has fans cooling?
A: Yes, fans are installed. It has holes under and in the side of machine, helps to cooling and extending machine life.
17. Q: What’s the warranty time?
A: 12 months. Warranty part: the temperature control circuit board.
18. Q: Can I buy extra heating tubes for replacing?
A: Yes. We offer one standby heating tube for each ABM.
19. Q: Can I buy extra water pump for replacing?
A: Yes. You could buy any spare parts as you want.
20. Q: Where is the spare heating lamp in the package?
A: Spare heating lamp is packed into a silver or black alluminum alloy tube. Since it is fragile, it need special protection. Please be careful when you push out the heating lamp.
21. Q: How to exchange the heating lamp.
A: Firstly, turn off the machine power supply, to ensure the broken heating lamp is cooled enough. Open the metal set in both sides of the machine, take out the broken heating lamp, pull out and unfasten the wires. Then exchange the new heating lamp as it was. Please ask for sales for video guidance with any questions.
22. Q: Does the machine have CE certification?
A: Yes.Caution: To ensure the power supply is turned off, before cleaning and replairing.
