PP Hollow Board Cutter NC03
Hollow Board Cutter can easily cut PP Hollow Fluted Corrugated Plastic Sheets along the groove, helping you create various advertising displays, posters, signs and packaging boxes.
Price includes GST for Australian customers. International customers: local taxes and duties are not included.
If you need to order 100 units or more, please contact sales11@sign-mate.com
Couldn't load pickup availability
Delivery
Delivery
Reviews
Product
Product introduction

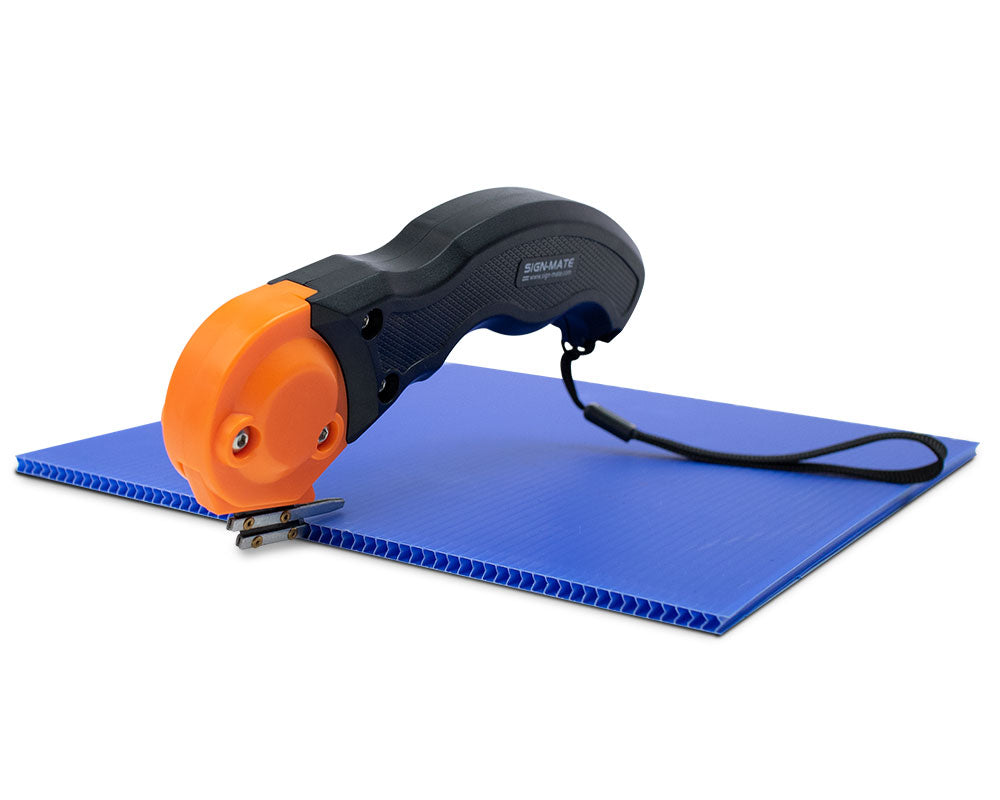

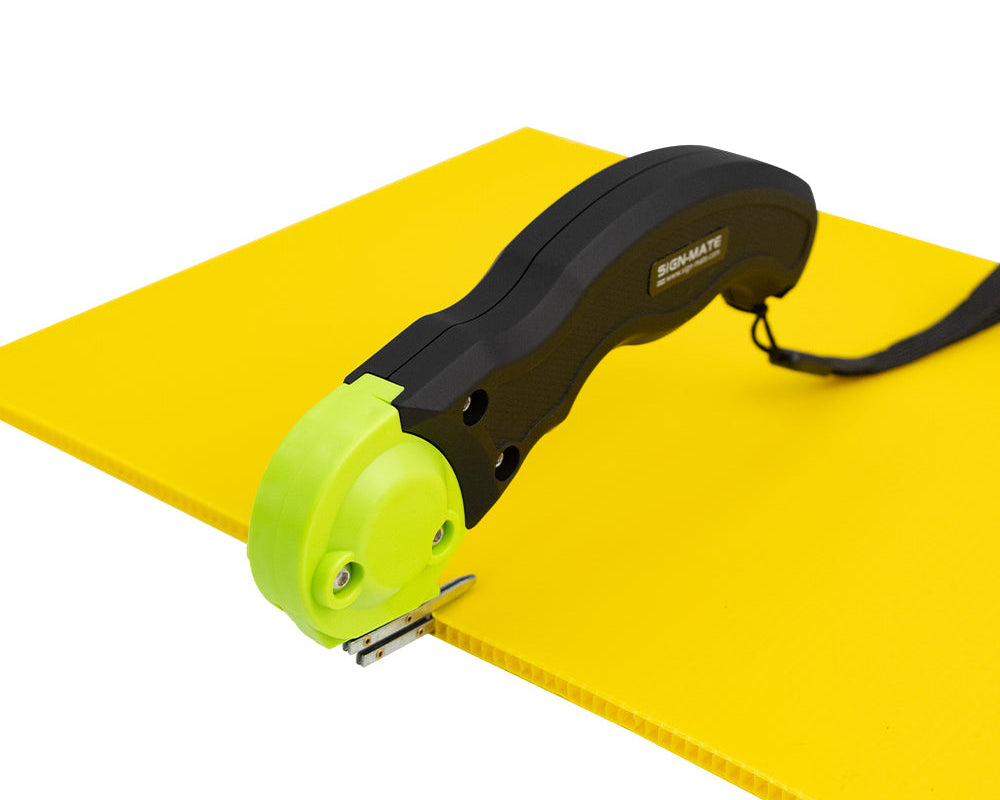

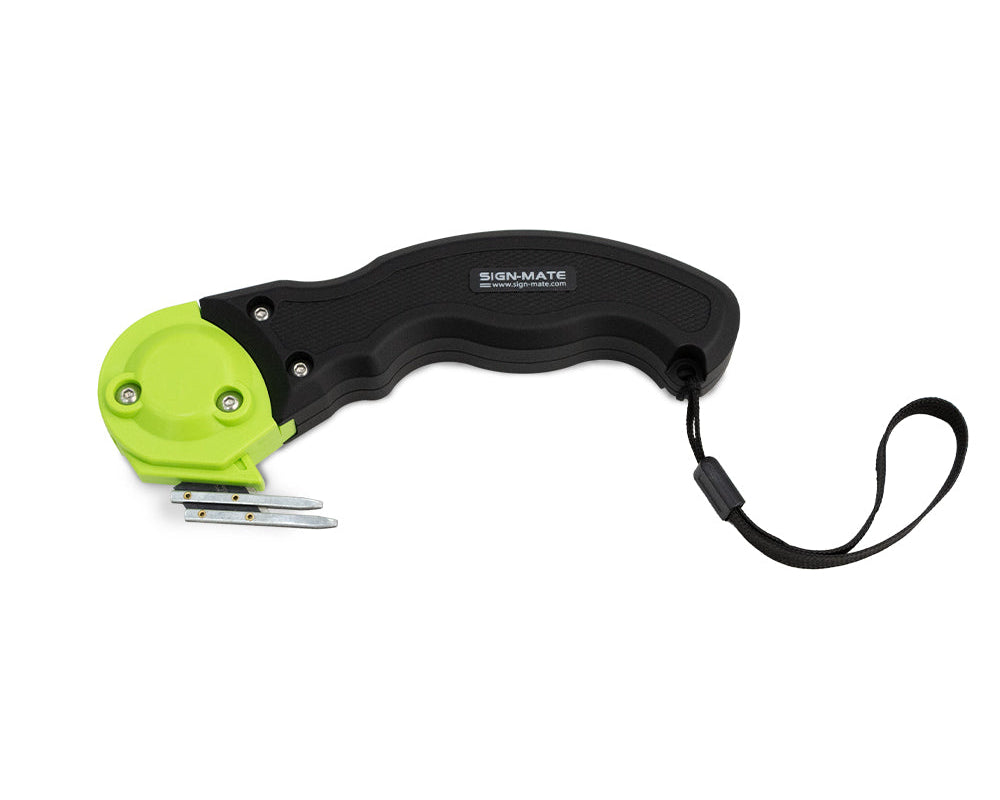

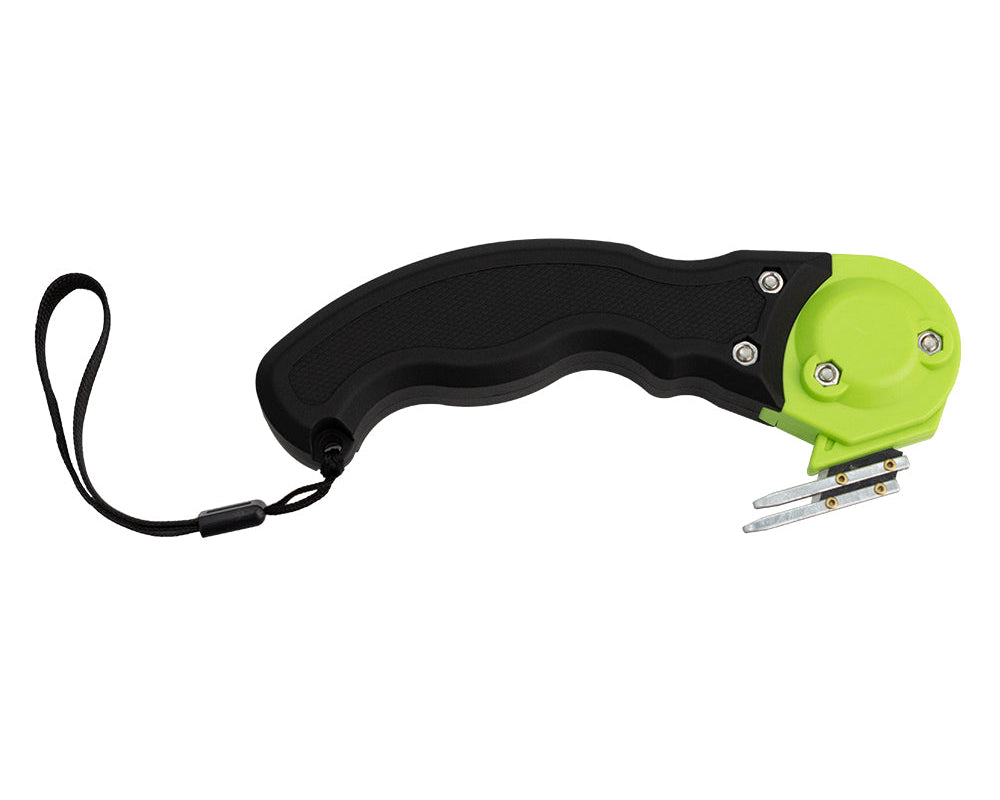

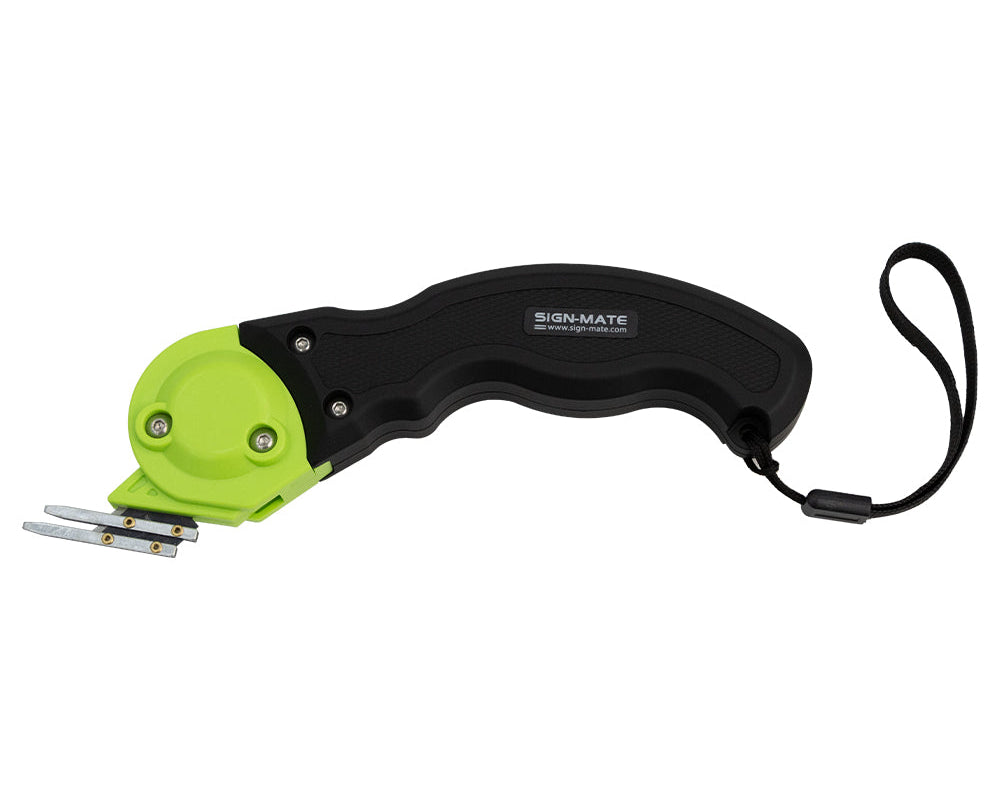

The PP Hollow Board Cutter NC03 is a tool, specially for processing for corrugated plastic plates. Comfortable holding, easy to use, and ergonomic design.

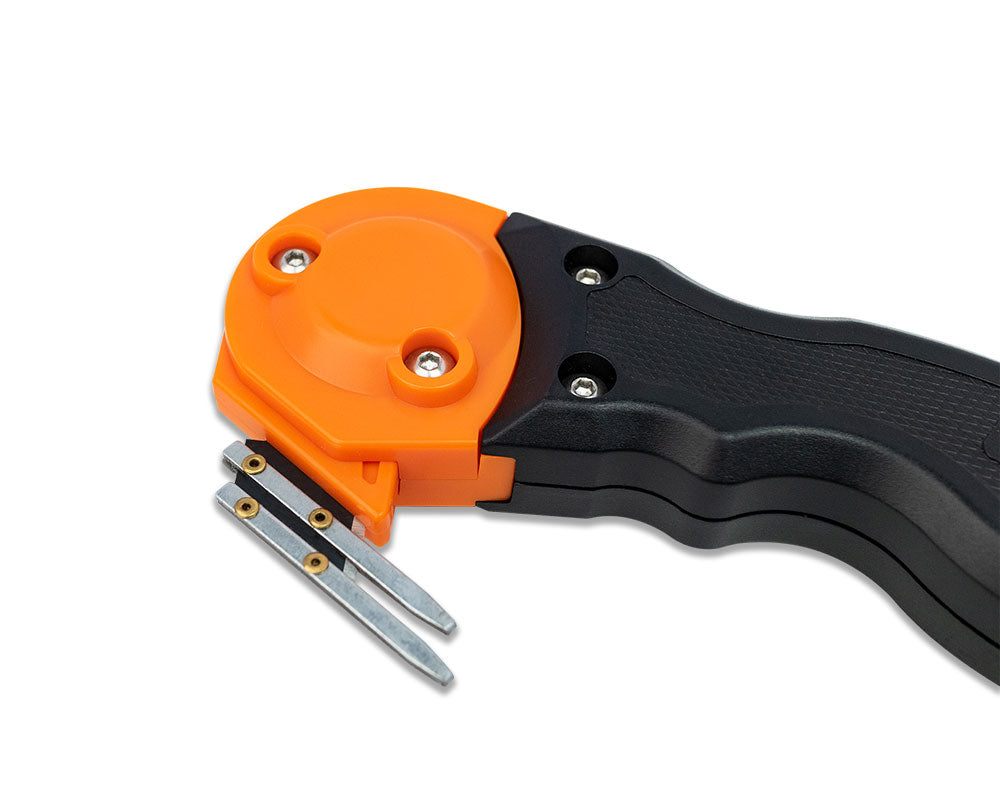

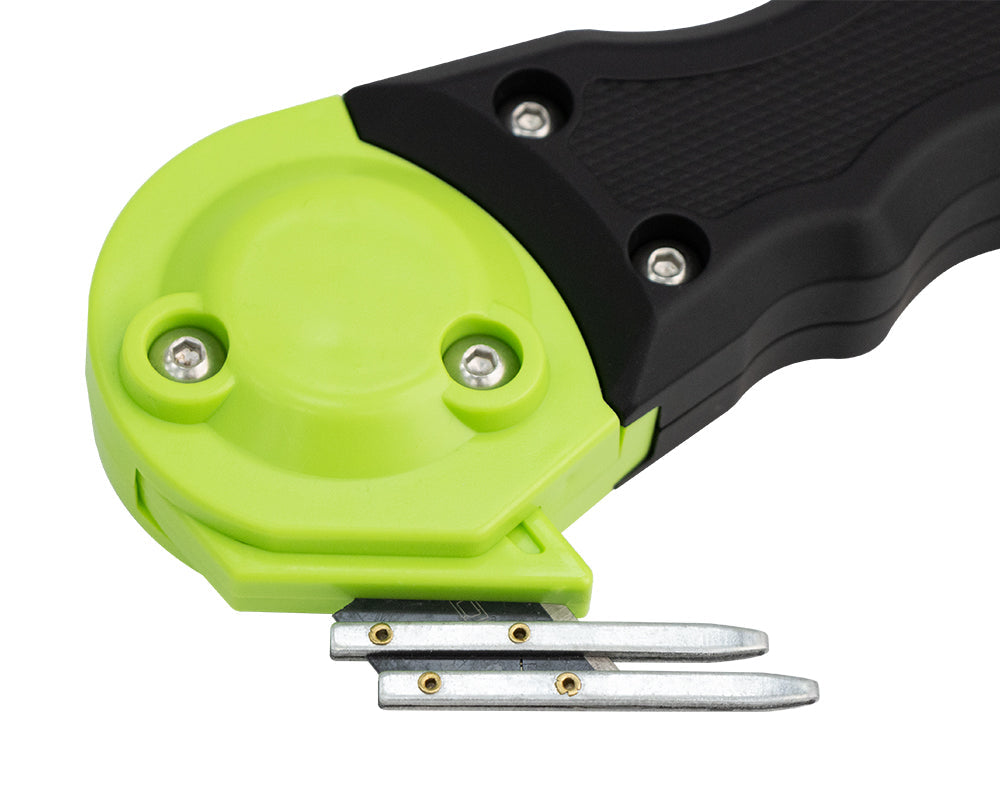

The cutting head with a unique structural design, which can achieve two functions on one tool:
A. You can cut off one side of the PP hollow board to achieve the purpose of Grooving. You can groove many times to make any shape.
B. You can cut off the upper and lower layers of the plastic plate at the same time to achieve the purpose of cutting and solving the problem that the ripple plastic board is not easy to cut.
The blade of the NC03 is made of high -quality steel, which has high strength and good sharpness. Each product equipped with two spare blades, which is convenient for guests to use.
-

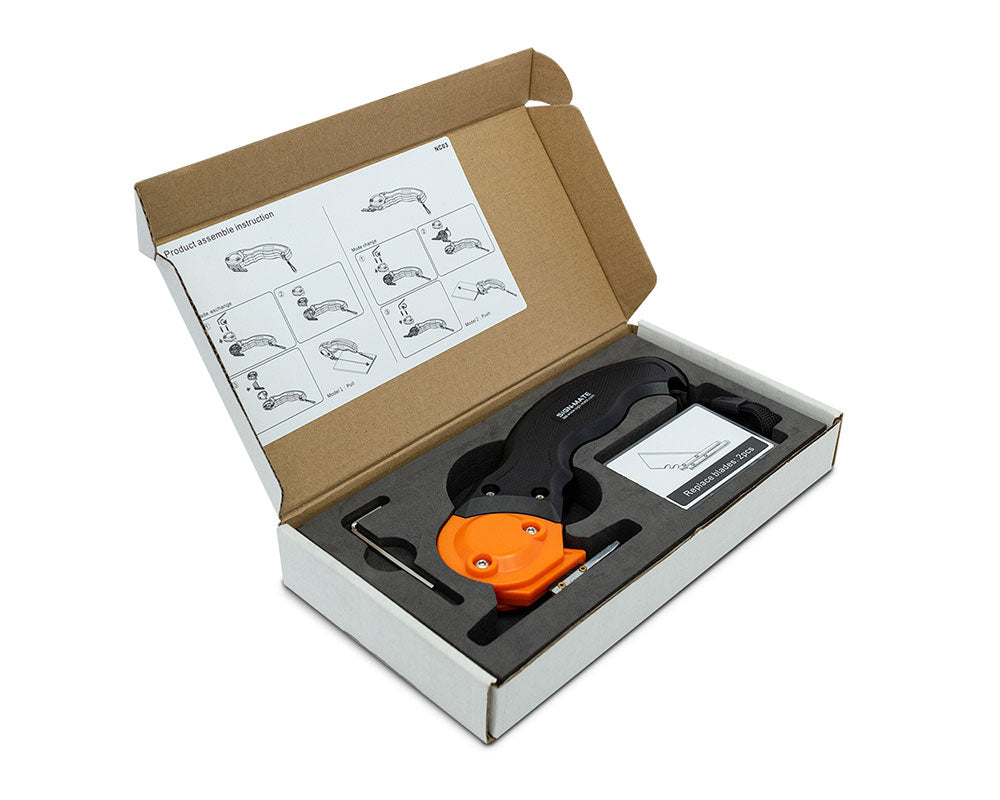

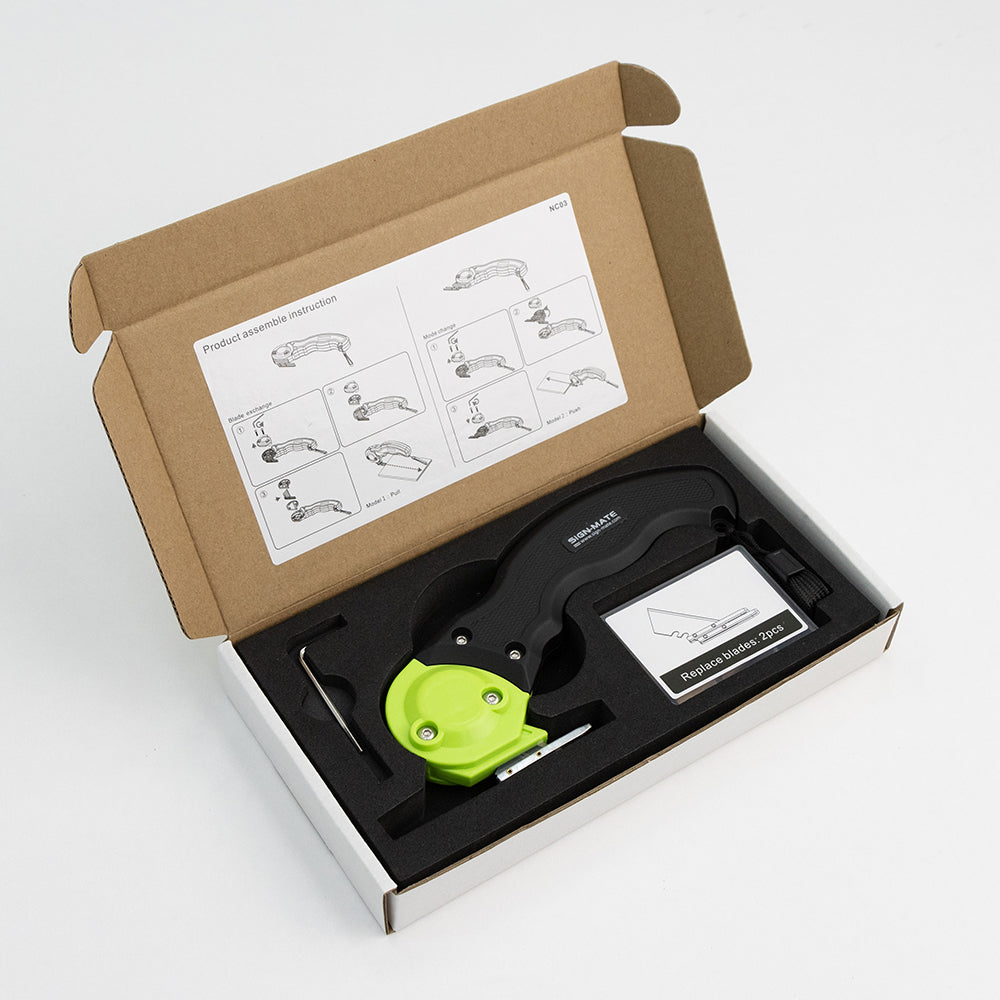

Complete set
1.Cutter NC03（1pc）
2.Inner hexagon spanner（1pc）
3.Replace blades（2pcs）
-
Function.1：grooving

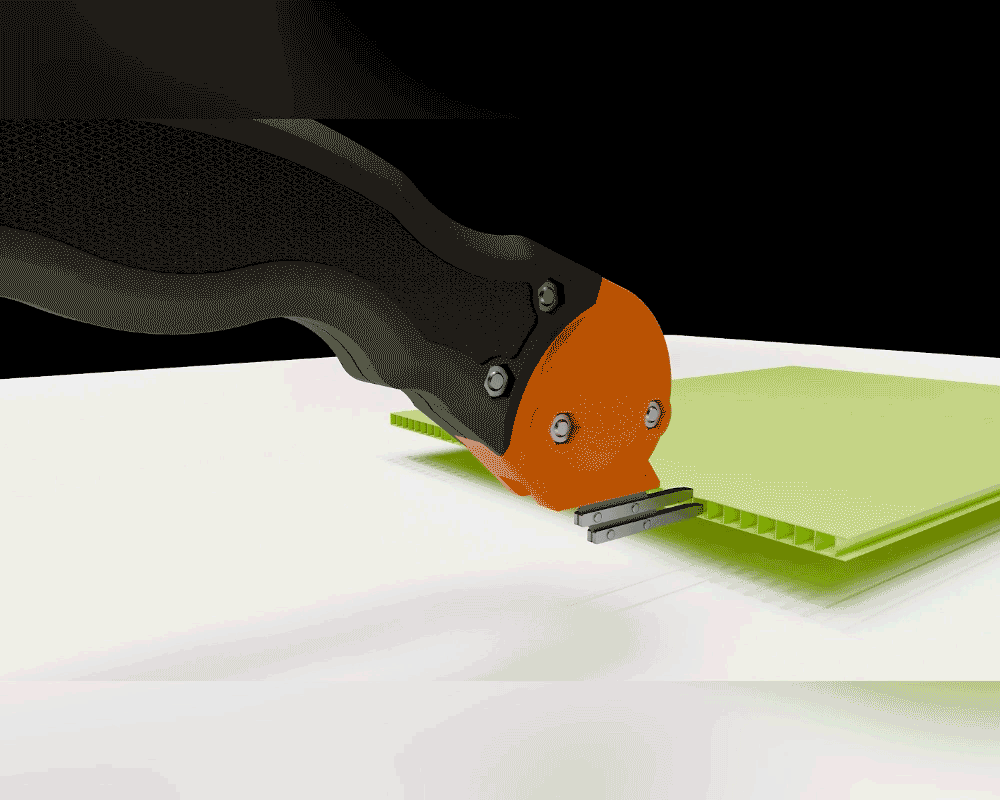

Insert the metal -guided rod ① into the PP hollow board and pull backwards to groove.
-
The effect after grooving
1. Cut a groove in PP hollow board to fold a right angle.
2. Cut multiple in PP hollow board to fold a rounded corner.
-
Function.2：cutting
Insert the metal -guided rod ②into the PP hollow board and pull backwards to cut.
-
Blade exchange

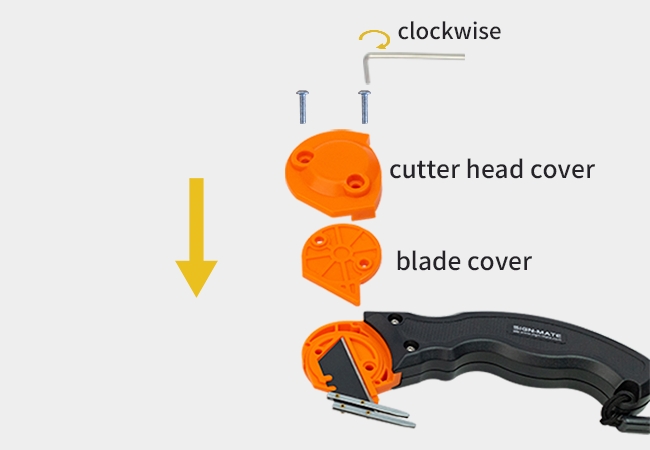

1. Use the inner hexagonal wrench to unscrew the two nuts on the head of the cutter head.
-
Blade exchange
2. Open the cutter head cover and blade cover
-
Blade exchange
3. Take out the old blade and replace the new blade.
-
Blade exchange
4. Place the new blade into blade slot, close the blade cover and head cover. Tighten the nut in clockwise.
-

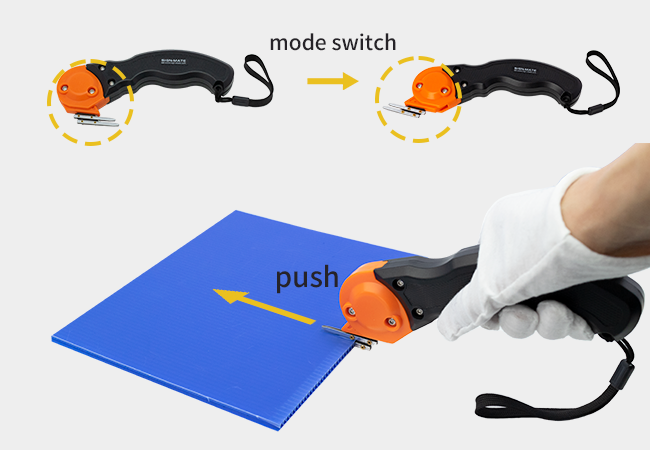

Mode switch
The direction of the blade can be changed from "pull" to "push".
-
Mode switch
1. Use the inner hexagonal wrench to unscrew the two nuts on the head of the cutter head.
-
Mode switch
2. Remove the cutter head cover.
-
Mode switch
3. Take out the blade module and turn it back, and then put back.
-
Mode switch
4. Close the blade cover and tighten the nut in clockwise
-
Product size
185x90mm
-
Packaging information
Outer package (carton)
Video
Parameter
| Sign-mate PP Hollow Board Cutter NC03 | |
|---|---|
| Product Name | PP Hollow Board Cutter NC03 |
| Product Model | NC03 |
| Cutting Thickness | 4mm/5mm |
| Product Packing | |
| Carton Size |
Carton:230(W) x 120(D) x 30mm(H)（1pc） Carton:490(W) x 180(D) x260mm(H)（20pcs） |
| Packing Quantity | 20pcs/ctn |
| Gross Weight |
200g（1pc） 6kg（20pcs） |
| Product Shiping Specs | |
| 20GP(General Purpose Container) | 16000pcs |
| 40GP(General Purpose Container) | 36000pcs |
| 40HQ(High Cube Container) | 45200pcs |
| Express Service | Available |
| Product Maintenance | |
| Certification | CE Certification |
| Warranty | N/A |
FAQ
1. What is the effect of cutter?
A: You can cut the groove on the corrugated plastic plate or easily cut the plastic plate along the line.
2. What is the usage of grooves on the corrugated plastic board?
A: You can use these grooves to fold the plate from the plane into an angle to make any shapes.
3. Is the blade specialized?
A: Yes.
4. What should I do if the blade is broken?
A: Each set of notching cutter is included in two sets of spare blades. Users can easily replace it by themselves. If all the spare blades are used up, you can buy the blades from us directly.
