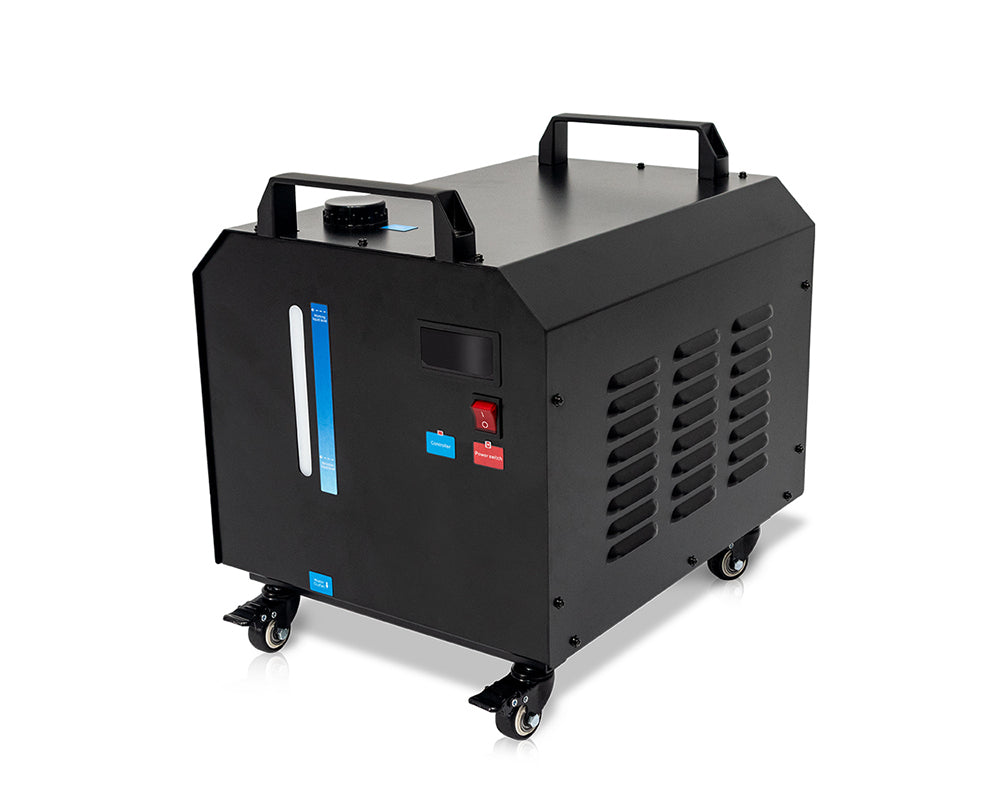

Water Cooling Chiller LS800/LS1850

Suitable for acrylic bending machine constant cooling,don't need change water

Regular price $596.00 USD
Regular price $596.00 Sale price $596.00
Sale Sold out
Tax included.


1. Easy operate

2. Low energy consumption and energy saving

3. Small and smart volume


The transportation time is usually 7-28 days




Product Introduction

The LS800 or LS1850 Water Chiller is a cooling device designed specifically for cooling acrylic bending machines. The water chiller works on the same principle as a car's cooling system, where water is enclosed and circulated within the system to prevent waste. Its closed-loop design ensures continuous water circulation, reducing the environmental impact of machine production and making it environmentally friendly. The LS800 and LS1850 are two models with the same function, but different power outputs, with LS1850 having a higher power output.

Using a water chiller can effectively control the temperature needed for machine operation, improve machine stability and performance. Both the LS800 and LS1850 work by pumping water through the machine for cooling, then releasing the hot water and continuously circulating it to achieve a sustained cooling effect. Since the water chiller uses a closed-loop design, it can effectively reduce water waste, achieving the goal of environmental protection.

Using the LS800 or LS1850 water chiller can improve the stability and lifespan of acrylic bending machines, as well as reducing environmental impact. It is an energy-saving, environmentally friendly cooling solution that is an excellent choice for those who want to reduce their carbon footprint while maintaining the best performance.

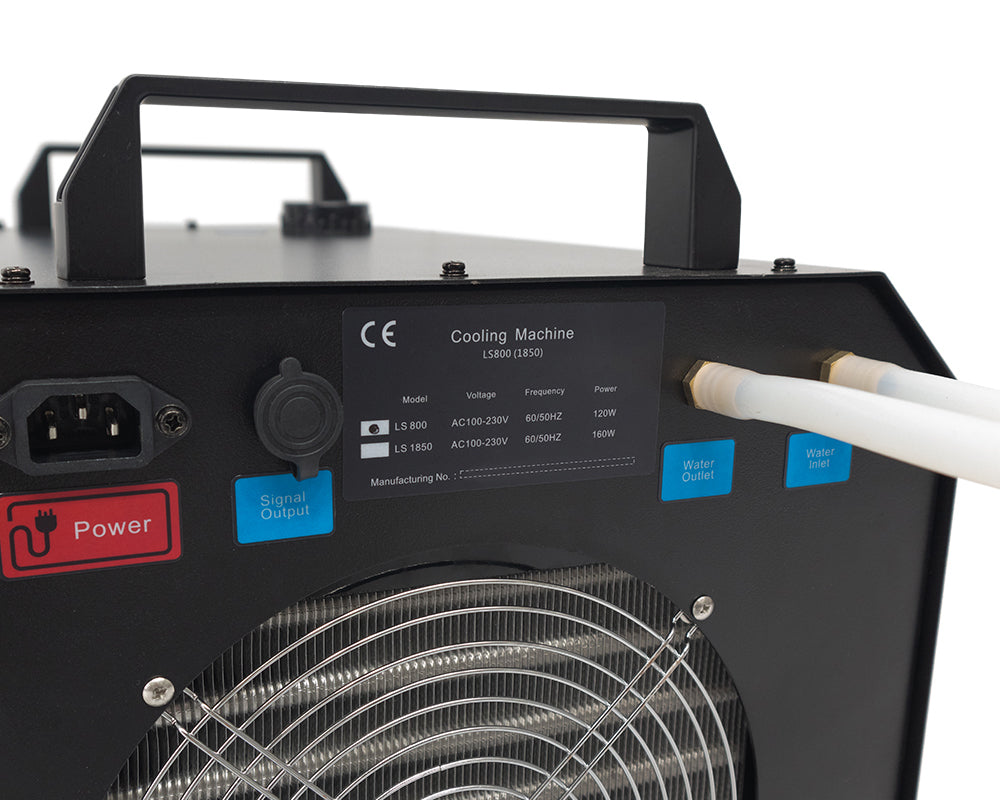

Water cooling chiller is for water circulation cooling. It has high temperature alarm and water shortage alarm, and signal output reserved, safety and environmental protection, power saving and durable. Two specification optional.

When the acrylic bending machine is working, it need to put a water pump into a tank to achieving the aim of water circulation cooling. When the water temperature up to 50℃, it need to change the water. While the water cooling chiller could slove such problem, could ensure constant working, do not need change water.

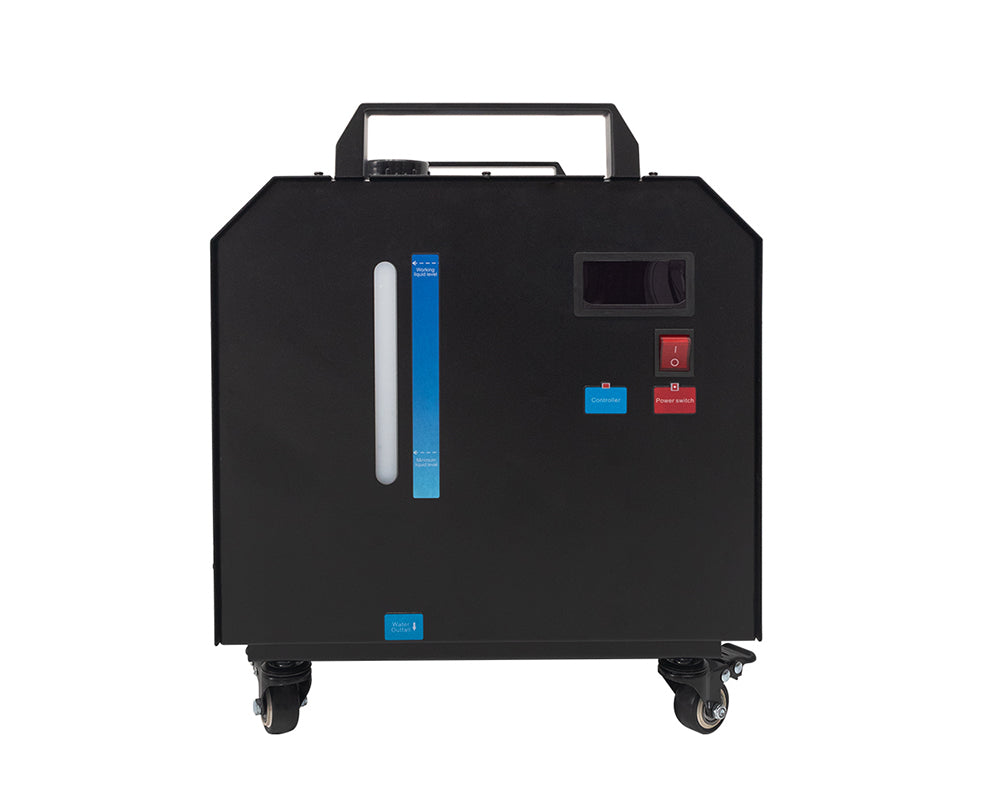

    One-key switch, easy operation

    It has high temperature alarm and water shortage alarm. The standard temperature is setted. An alarm will be triggered if the temperature exceeds this level.Safety and environmental protection, power saving and durable.

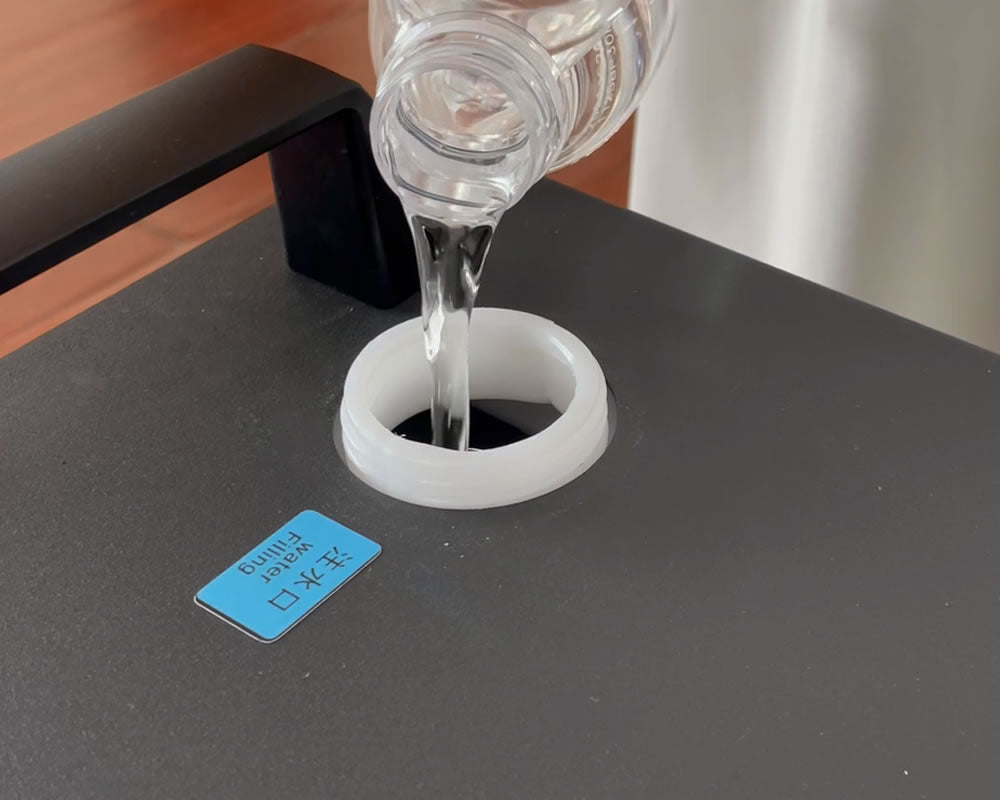

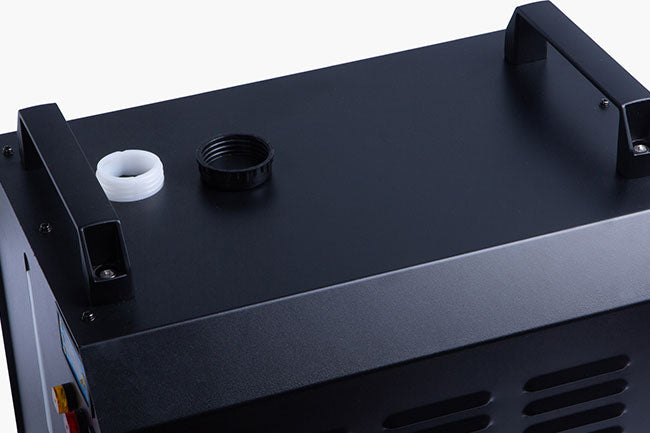

    Water inlet

    LS800: Water tank capacity 8L

    LS1850: Water tank capacity 20L

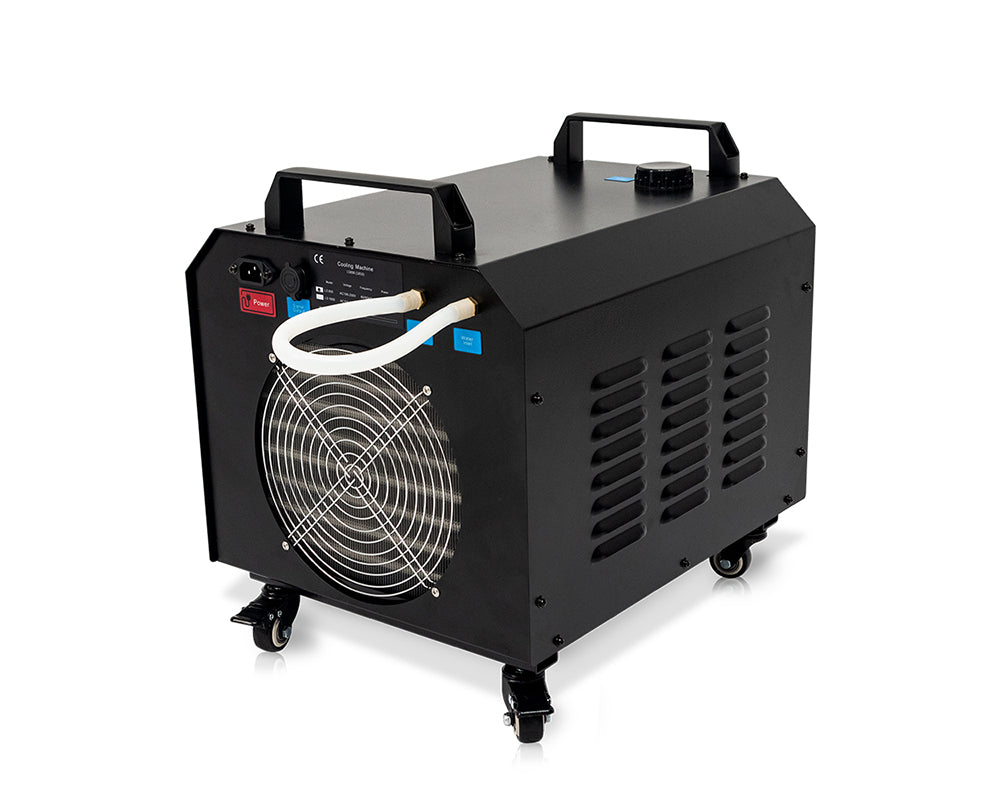

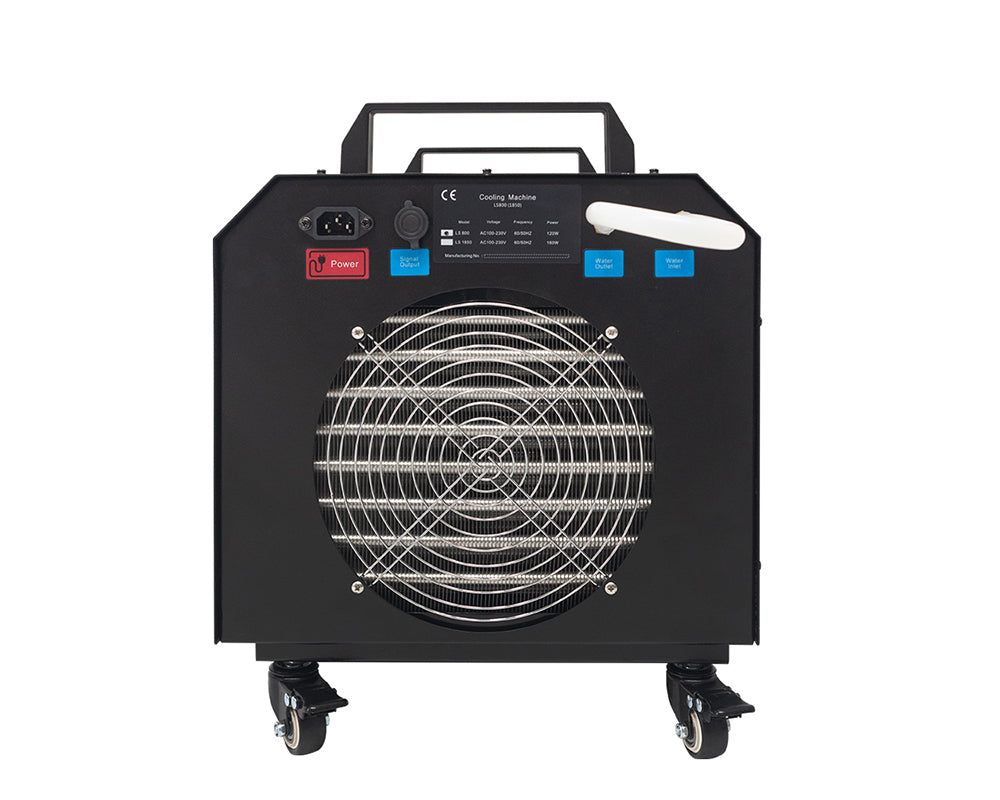

    High speed fan, high efficiency heat dissipation

    The water cooling chiller is an advance device, could achieve better cooling for the acrylic bending machine.



Aecfun-Water Cooling Chiller
Product Name Water Cooling Chiller
Product Model LS800 LS1850
Input Voltage AC100-230V AC100-230V
Working Power 100W 180W
Heat Exhaust 800W 1850W
Pump Lift 3m 7.9m
Water Tank Capacity 8L 20L
Product Packing
Carton Size Carton: 505(W) x 405 (D) x 405 mm(H)  Carton: 555(W) x 505(D) x 515 mm(H)
Packing Quantity 1pcs/ctn 1pcs/ctn
Net Weight 13kg 20kg
Gross Weight 15.5kg 23kg
Product Shiping Specs
20GP 250PCS 160PCS
40GP 575PCS 336PCS
40HC 690PCS 420PCS
Express Service Available Available
Product Maintenance
Warranty 365days (exclude force majeuce,aritificial factors) 365days (exclude force majeuce,aritificial factors)


1. Q: What is the purpose of the chiller?

A: The water cooling chiller is a box -type refrigeration equipment that helps the device that needs to cool down. We are mainly used to match the acrylic bending machine to replace ordinary water pumps.

2. Q: Do you still need to buy a water cooling chiller after buying an acrylic bending machine?

A: Our acrylic bending machine has a water pump and water pipe, which can not buy chiller. Generally, the acrylic bending machine needs to be by water pump during the work process. After several hours working, the water temperature raised, it should be changed to continue. Some users think that changing water is more troublesome, so they chose the chiller. The chiller  is an upgraded device. It can automatically circulate cooling and closed box type, which can maintain the environment clean and bring a different work experience.

3. Q: How do I choose the water chiller?

A: There are two models of chiller, LS800 and LS1850.
Single acrylic bending machine ABM700/1300, it is recommended to LS800.
3 heating tubes acrylic bending machine ABM703/1303, it is recommended to be LS1850.

4. Q: Is the operation of the water cooling machine simple?

A: We optimize the operation interface of chiller, the function is clear, and the operation is simpler. There are instructions in the product, and you can also contact the salesperson if you don't know.

5. Q: Does the chiller also need water?

A: Yes. In order to make sure the convenience and safety of transportation, we will discharge the water first and then package it. Therefore, after you receive chiller, please fill the water in your first using.

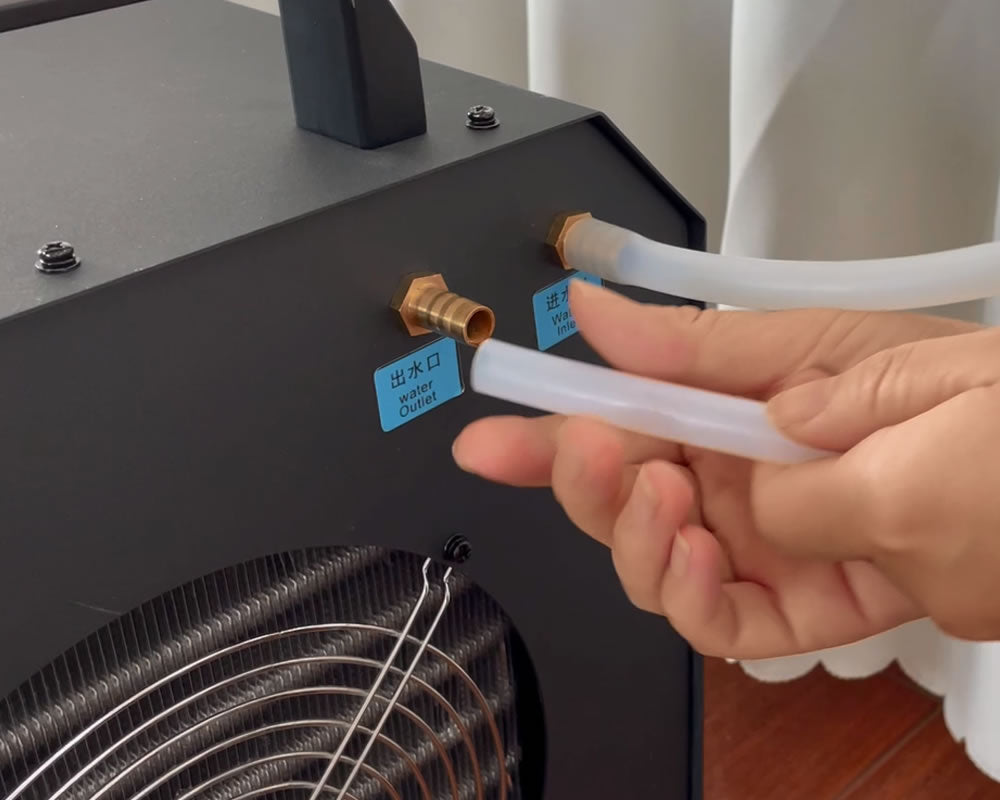

6. Q: Is there a drainage outlet of chiller?

A: Yes, the outlet is at the bottom of the machine.

7. Q: What is the difference between chiller and pumps?

A: The chiller does not need to change the water frequent, he can keep the water temperature around 40°always. About the water pump cooling, you need to prepare a large bucket, and after the water temperature rises, you need to change the water to keep the water temperature for cooling machines.

8. Q: What is the capacity of water tank?

A: There are two models of our chiller, and the water tank capacity is also different:
LS800, the water tank capacity is 8L.
LS1850, the water tank capacity is 20L.

9. Q: What is the working principle of the chiller?

A: The chiller equipped with a finned cooler, which is directly used by fan to force air flow to take away the calories to achieve the purpose of reducing water temperature.
