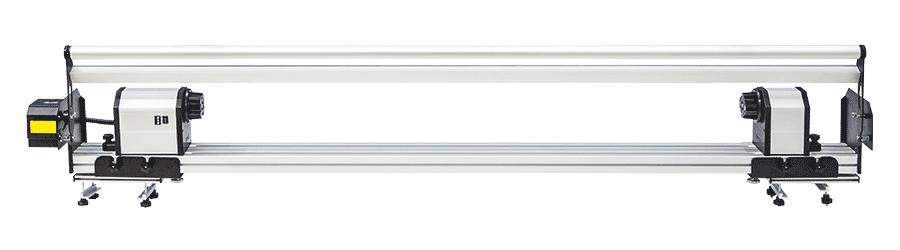

Feeding System F3 With Tension Bar

High quality Feeding system suitable for ROLAND printers 54"/64"/74"

Regular price $1,268.00 USD
Regular price $1,268.00 Sale price $1,268.00
Sale Sold out
Tax included.

1.With DC 24V adaptor changing input voltage 110-240V, widely used in most countries.

2.Plastic medium flange 2"(φ48-53mm) and 3"(φ75-80mm) are available for various paper core.

3.Universal linking slab is suitable for any printers without punching holes. Such as Roland  FJ740 / RA640 / RS640 / RF640 / VP540 / SP540 / FJ540, MUTOH VJ1938 / VJ1604 / VJ1638 / VJ1304 / 900C, MIMAKI JV33,

EPSON 9700/9100/S30680/GS6000、HP、Canon....

4.Application materials: PP, adhesive sticker, transfer-paper, pictorial cloth, car sticker , wallpaper, Soft film, leather, banner, etc....


The transportation time is usually 7-28 days




Product Introduction

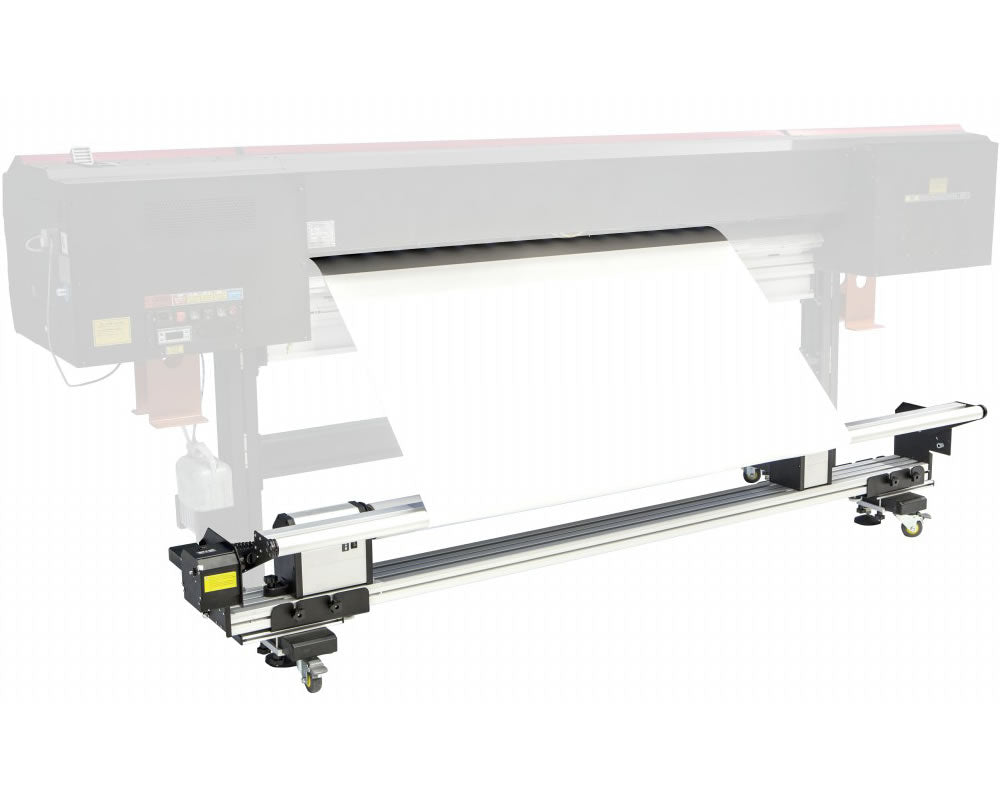

Automatic feeding system F3, with inductive tension system, feeding the medias during printing. Suitable for bearing heavy material, up to 50KG.Strong motor, neat feeding, durable life.

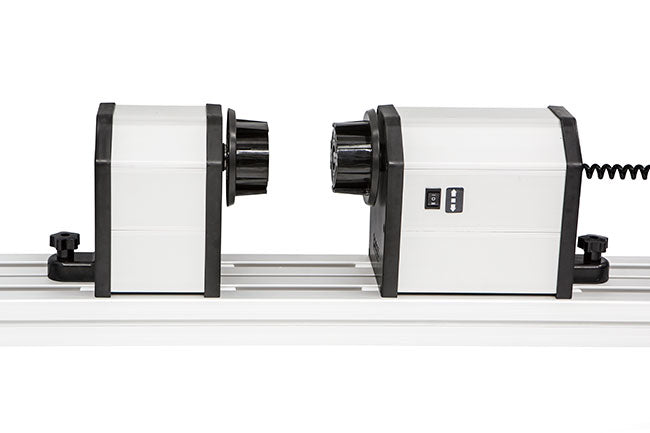

    Creative and easy body design

    Removable main parts is suitable for different length of paper core.

    Equipped with motor that has two different rotation model,the graphic can be rolled up clockwise or counterclockwise.

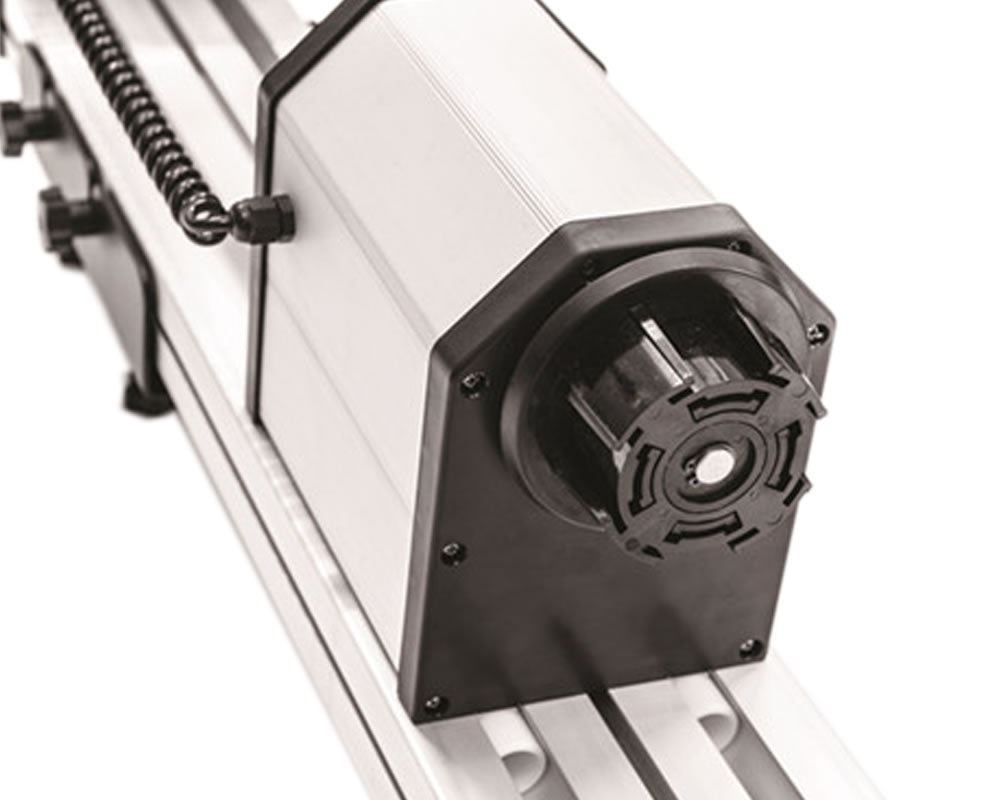

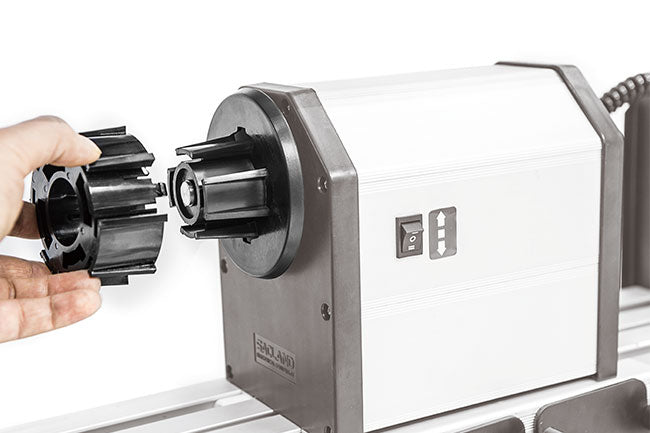

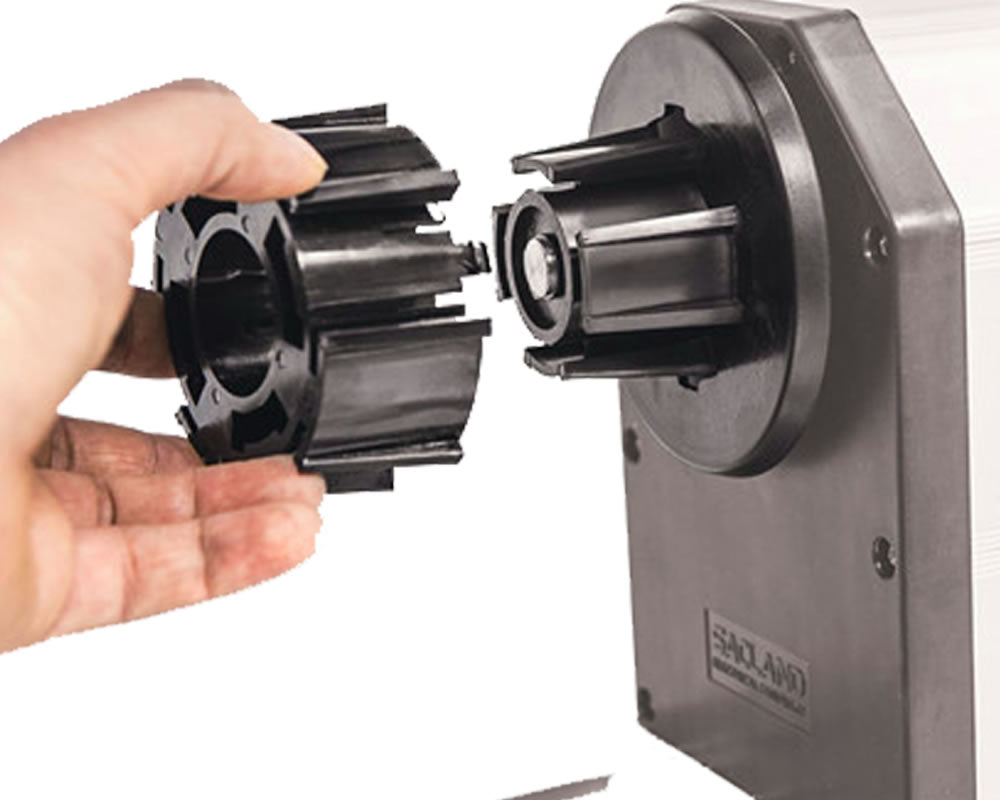

    New Plastic Axis

    New plastic axis is much stronger and wearproof than before.

    The diameter of paper core is 2in(φ48-53mm) or 3in(φ75-80mm)

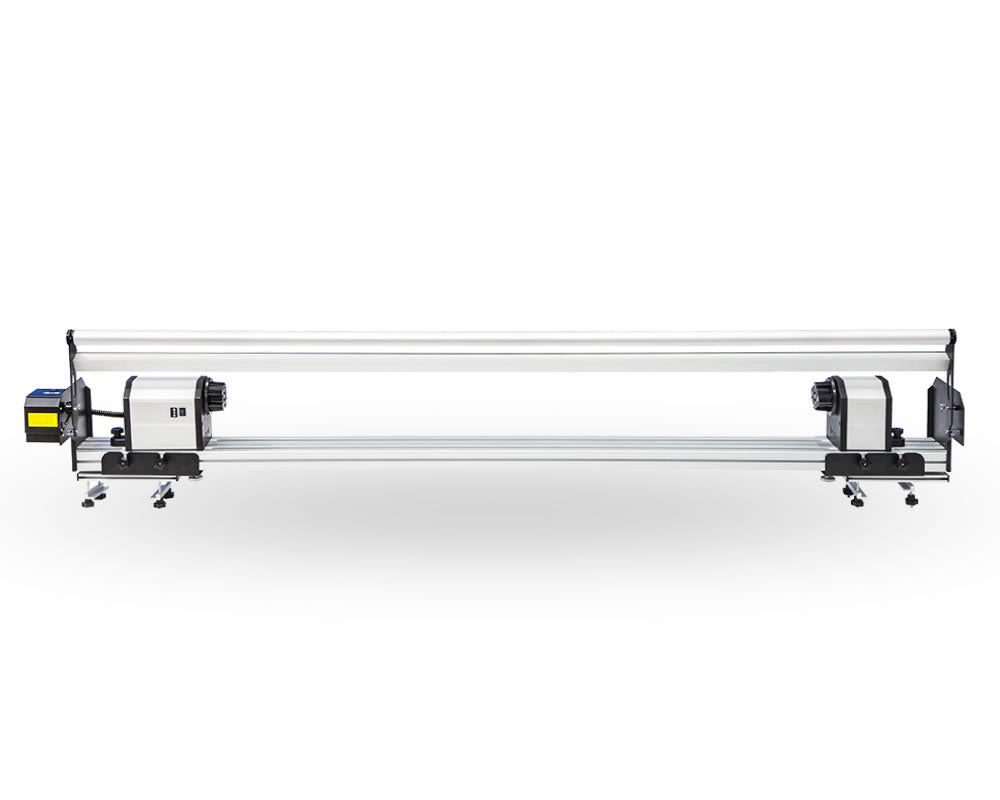

    The structure of double track

    The double track can bear maximum weight of 50kg.

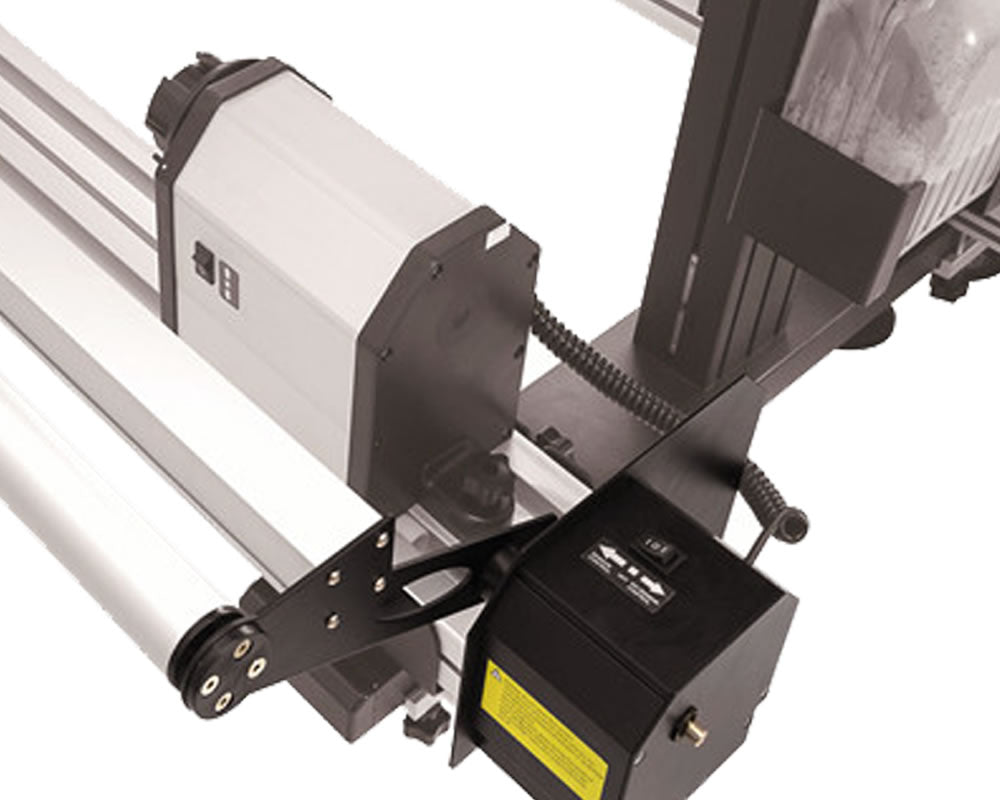

    Tension bar and sensor

    Use the tension bar and sensor to achieve feeding automatically.

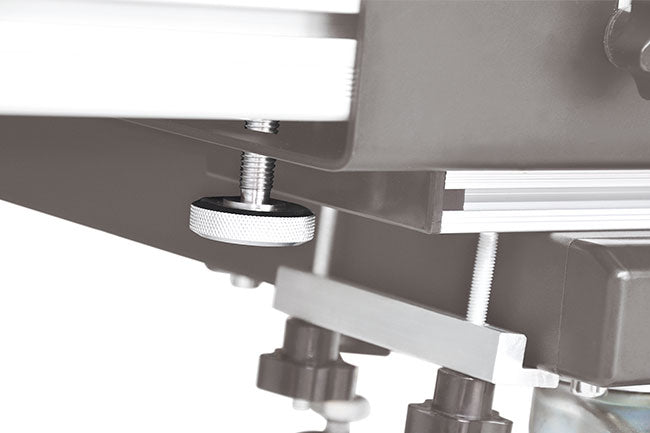

    Horizontal Adjustable Screw

    On both sides of the bottom have screw to adjust balance.


    Universal Linking Slab

    Special designed universal linking slab can be fixed directly to any printer without punching.



Aecfun -Feeding System F3
Product Name Feeding System
Product Model F3
Applicable Width 54"/64"/74"(1300/1600/1800mm)
Input Voltage 100-240V
Working Voltage 24V
Working Power 36W
Paper Core Diameter 2"(Φ48-53mm) or 3"(Φ75-80mm)
Maximum Media Diameter Φ260mm
Bearing Weight 50KG
Product Packing
Carton Size Carton:54"-2300(W)x350(D)x380mm(H)
Packing Quantity 1pcs/cnt
Net Weight 25/26/29kg
Gross Weight 29/30/33kg
Product Shiping Specs
20GP(General Purpose Container) 54"-96pcs/ 64"-72pcs/ 74"-72pcs
40GP(General Purpose Container) 54"-204pcs/ 64"-180pcs/ 74"-144pcs
40HQ(High Cube Container) 54"-238pcs/ 64"-210pcs/ 74"-168pcs
Express Service Available
Product Maintenance
Certification CE Certification
Warranty 365D(exclude force majeure,aritificial factors)


1. Q: Does the F3 have motor?

A: Yes, DC 24V, 36W.

2. Q: Is 110V available?

A: Yes, working voltage is 24V, input voltage is 100-240V.

3. Q: What is the theory of F3?

A: Inductive tension feeding.

4. Q: Does the motor always running, the machine always feeding?

A: The unit is sensor controlled, synchronize working with printer. During printing, it will feed the material when tension bar goes to its position. Printing stopped, feeding stopped as well.

5. Q: What is the difference between F3 and normal feeding system?

A: For some soft materials, the material feeding smoothly by constant tension.
For some heavy materials, the machine supplies initiative feeding power.

6. Q: How about the bearing weight and maximum media diameter?

A: ≤50kg. The maximum media diameter is φ260mm(10’’).

7. Q: What’s the difference between take up system T1 and F3?

A: The appearance and configuration are same. F3 is feeding system, T1 is take up system. The direction of sensor is different, just opposite, one for feeding and one for rolling.

8. Q: How long is the warranty time?

A: 12 months, the warranty parts: circuit board and motor.

9. Q: Does it have CE certificate?

A: Sure.
