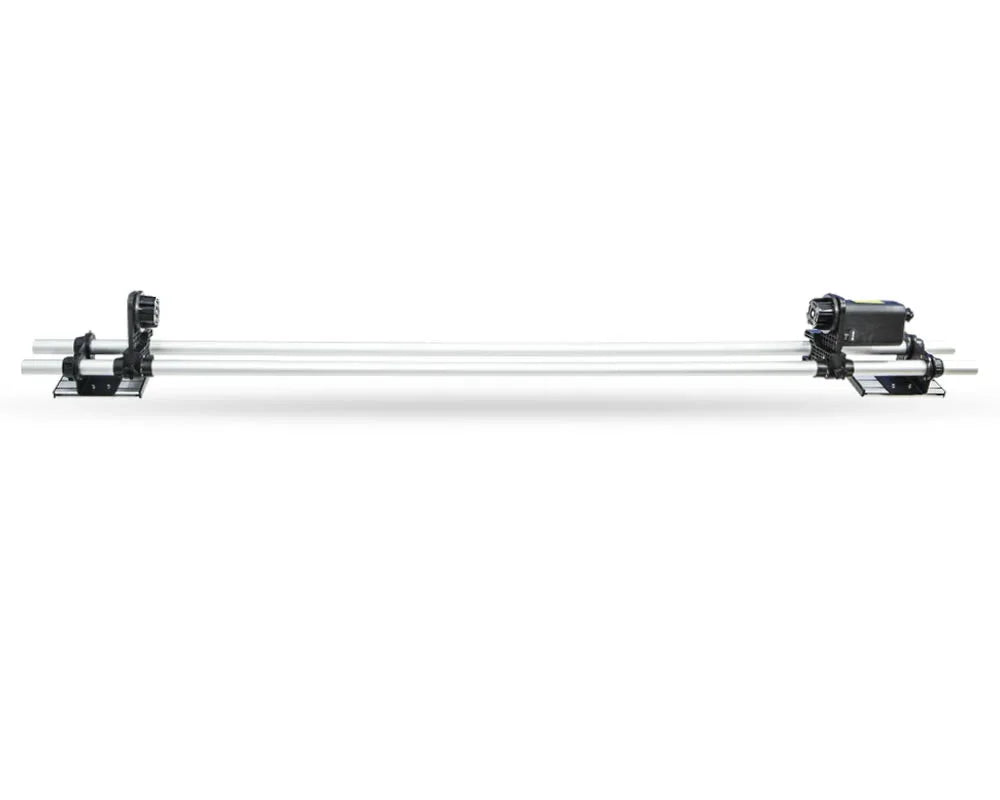

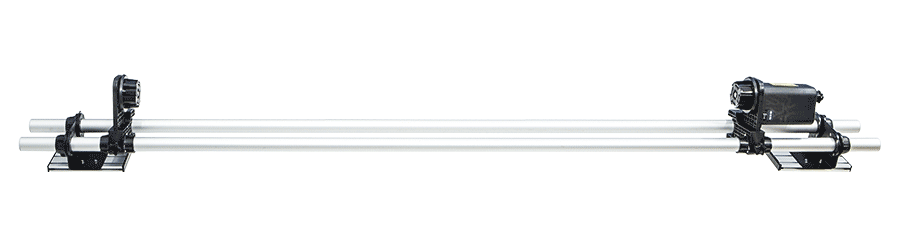

Take Up System K3

Suitable for all kinds of printers,ROLNAD, MUTOH ,EPSON etc...

Regular price $435.00 USD
Regular price $493.00 Sale price $435.00
Sale Sold out
Tax included.

1.Plastic medium flange 2"(φ48-53mm) and 3"(φ75-80mm) are available for various paper core.  Max. Bearing weight 35KG

2.Universal linking slab is suitable for any printers without punching holes. Such as Roland  FJ740 / RA640 / RS640 / RF640 / VP540 / SP540 / FJ540, MUTOH VJ1938  / VJ1604 / VJ1638 / VJ1304 / 900C, MIMAKI JV33, EPSON 9700 / 9100 / S30680 / GS6000、HP、Canon....

3.A pplication materials: PP, adhesive sticker, transfer-paper, pictorial cloth, car sticker , wallpaper, etc....


The transportation time is usually 7-28 days




Product Introduction

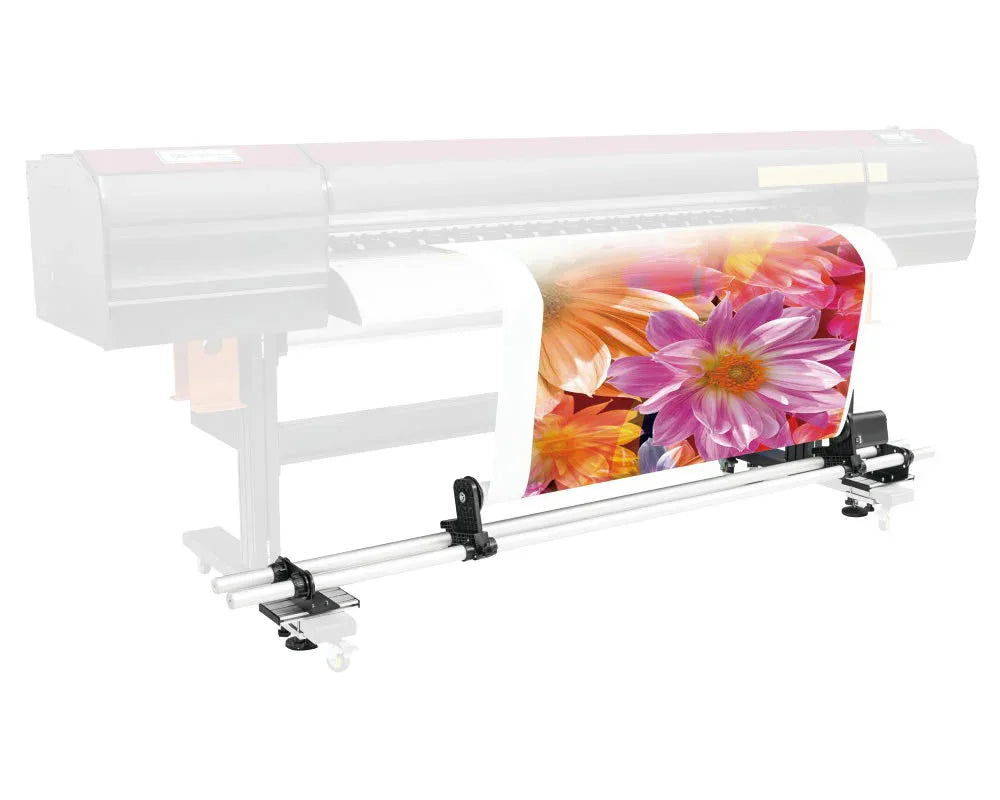

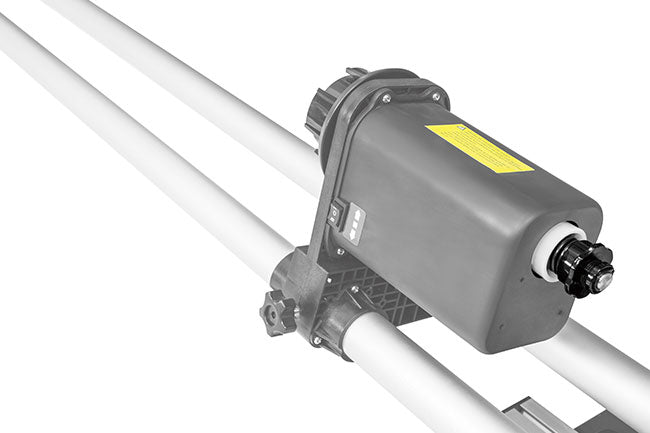

Automatic take up system K3, equipped with damper, double pipe structure, rolling the materials after printing. With 12V DC motor, strong motor, long lifetime.

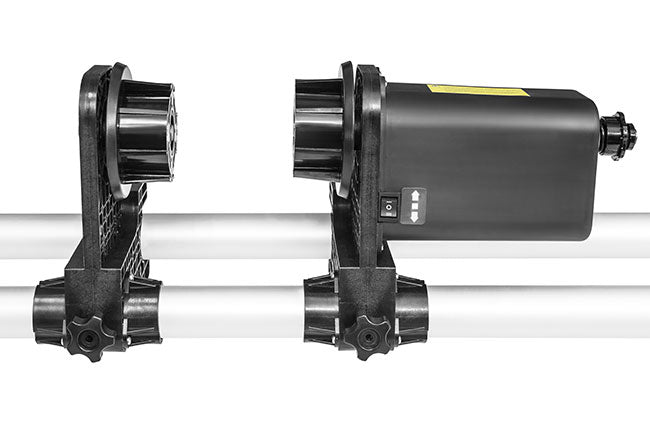

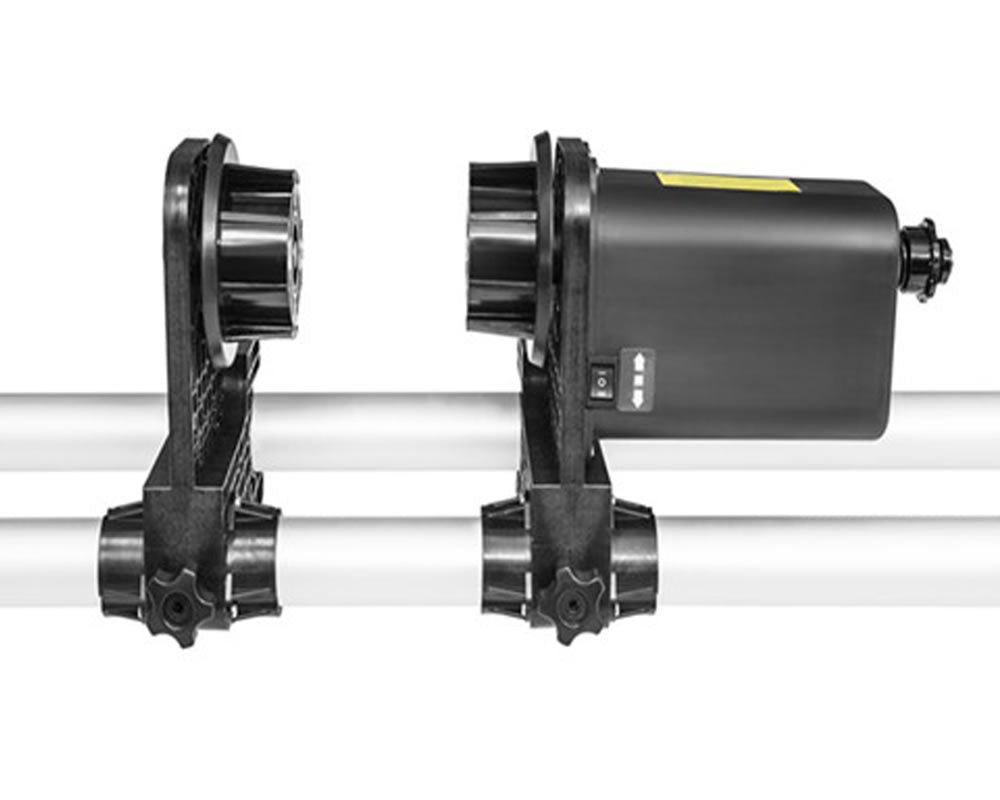

    Creative and easy body design

    Removable main parts is suitable for different length of paper core.

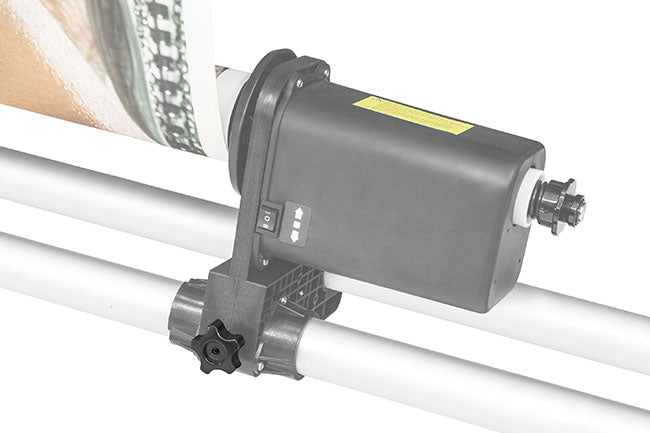

    Equipped with motor that has two different rotation model,the graphic can be rolled up clockwise or counterclockwise.

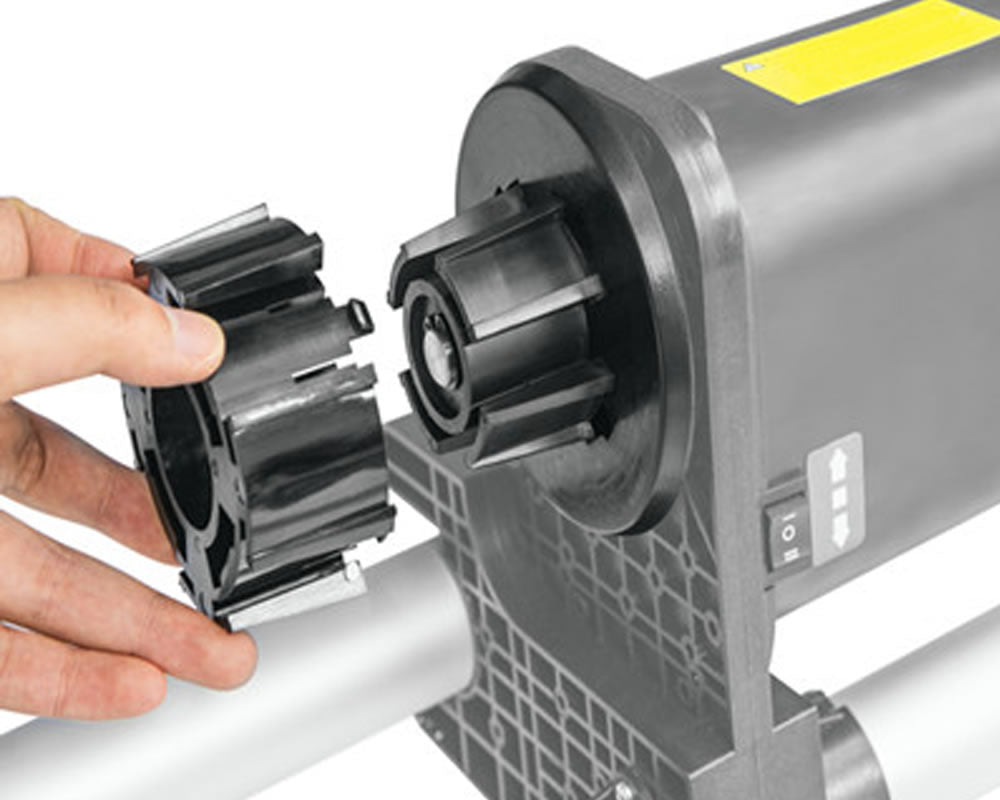

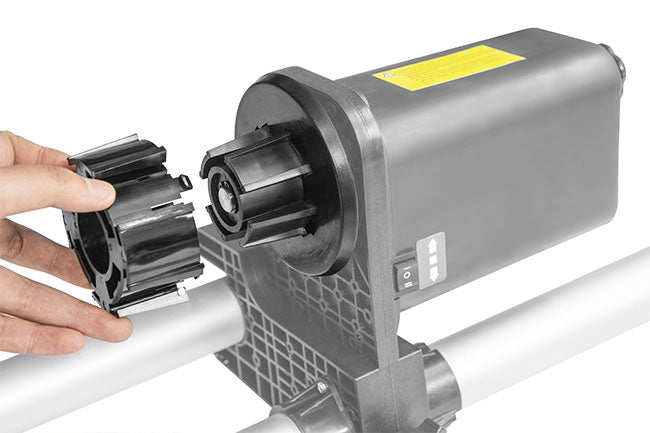

    New Plastic Axis

    New plastic axis is much stronger and more wearproof than before.

    The diameter of paper core is 2in(φ48-53mm) or 3in(φ75-80mm)



    Screws of main parts fix paper core tightly to insure neat rolling.

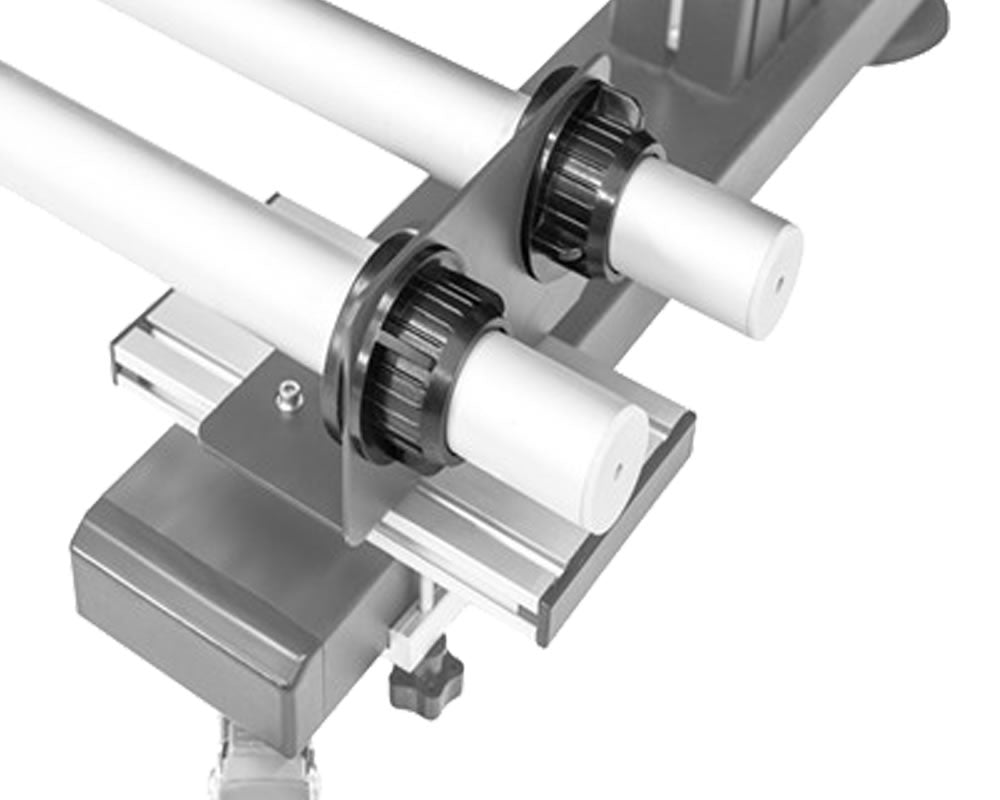

    The through hole can eliminate the size deviation caused by printer and has strong load-bearing capacity.

    Adjustable torque

    Adjust torque to achieve different strength of rolling according to different weight of graphic.

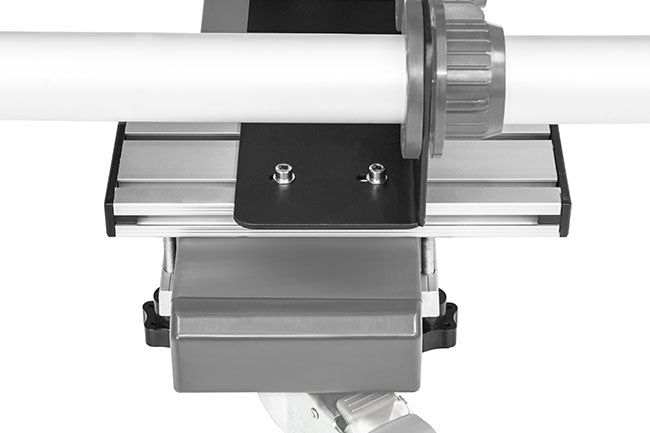

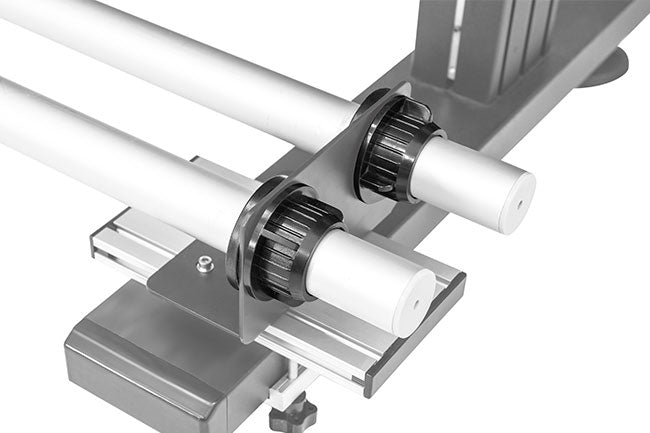

    Universal Linking Slab

    Special designed universal linking slab can be fixed directly to any printer without punching.



Aecfun-Take up System K3
Product Name Take-up System
Product Model K3
Applicable Width 54"/64"/74"(1300/1600/1800mm)
Input Voltage 100-240V
Working Voltage 12V
Working Power 24W
Paper Core Diameter 2"(Φ48-53mm) or 3"(Φ75-80mm)
Maximum Media Diameter Φ220mm
Bearing Weight 35kg

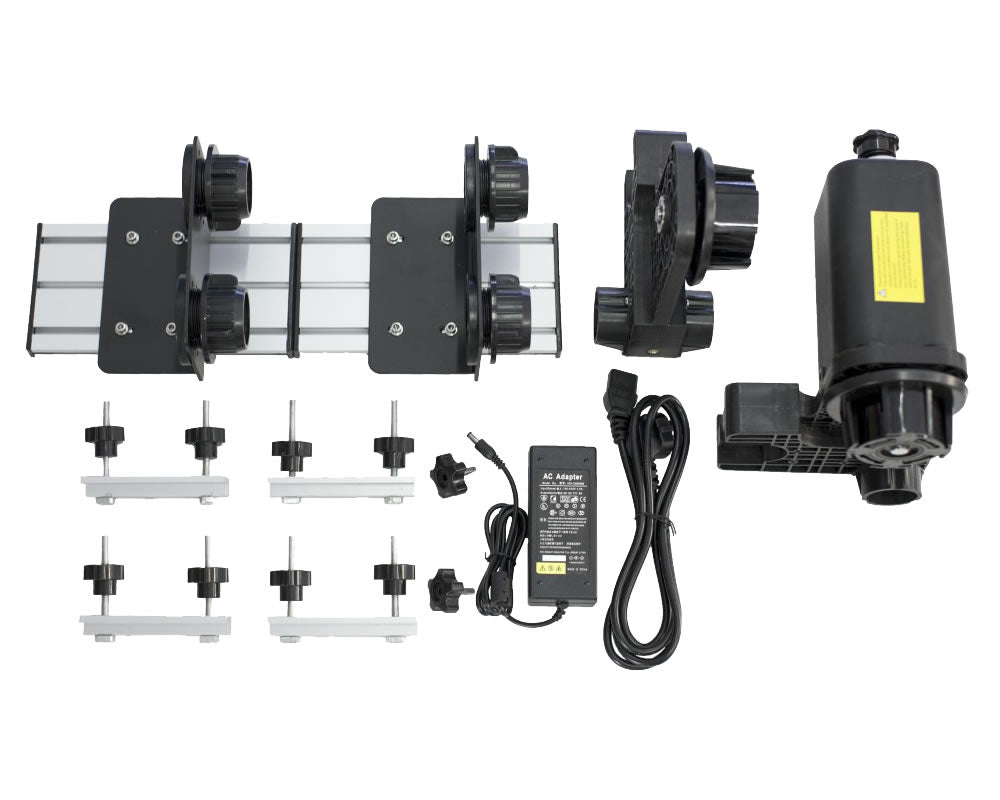

Product Packing
Carton Size Pole:54"-1900(W)x65(D)x100mm(H)(Carton)
Main part: 54"-450(W)x440(D)x290mm(H)(Carton)
Main part:  64"&74"-450(W)x440(D)x290mm(H)(Carton)
Packing Quantity 2ctns/pcs (Pole: 1pcs/ctn; Main part: 1pcs/ctn)
Net Weight 8/9kg
Gross Weight 10.5/12kg
Product Shiping Specs
20GP(General Purpose Container) 54"-416pcs/ 64"&74"-416pcs
40GP(General Purpose Container) 54"-624pcs/ 64"&74"-624pcs
40HQ(High Cube Container) 54"-702pcs/ 64"&74"-702pcs
Express Service Available
Product Maintenance
Certification CE Certification
Warranty 180D(exclude force majeure,aritificial factors)


1. Q:How about the working theory of K3?

A:It is damper take up system.

2. Q:What materials can it take up?

A:It can take up car sticker, PP, pictorial cloth, adhesive sticker, wallpaper, transfer paper.

3. Q: How about the bearing weight?

A: ≤35KG.

4. Q: How about the voltage?

A: Working voltage:12v; Input voltage:110v-240v. Four plugs optional: Chinese standard, British standard, European standard and American standard.

5. Q: Can I adjust the rolling speed ?

A: No, you can’t. It syncs with the printer. ( It is suitable for two Epson print heads)

6. Q:Can I connect it with our printers?

A:Yes ,you can. Take-up system K3 with universal linking slab, apply to any printer.

7. Q:What’s the warranty?

A:3 months for motor.

8. Q:What’s the consumable part?

A:Motor, plastic axis, damper.

9. Q:Do you have CE certification?

A: Yes, we have.

10.Q:What’s the difference between K3 and other take-up systems?

A: K3 is damper take up system, need to adjust the damper to strength the torque.

Please refer to the comparison table.
