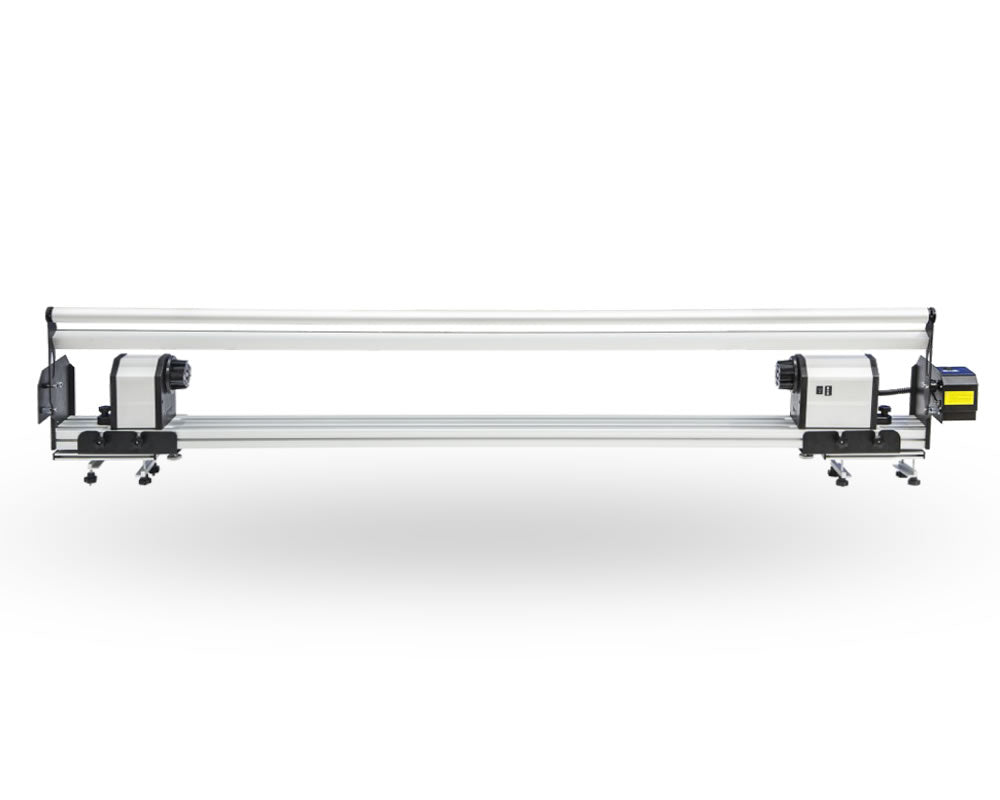

Take-Up System T1 With Tension Bar

High quality take-up system suitable for ROLAND printers 54"/64"/74"

Regular price $1,230.00 USD
Regular price $1,230.00 Sale price $1,230.00
Sale Sold out
Tax included.

1.With DC 24V adaptor changing input voltage 100-240V, widely used in most countries.

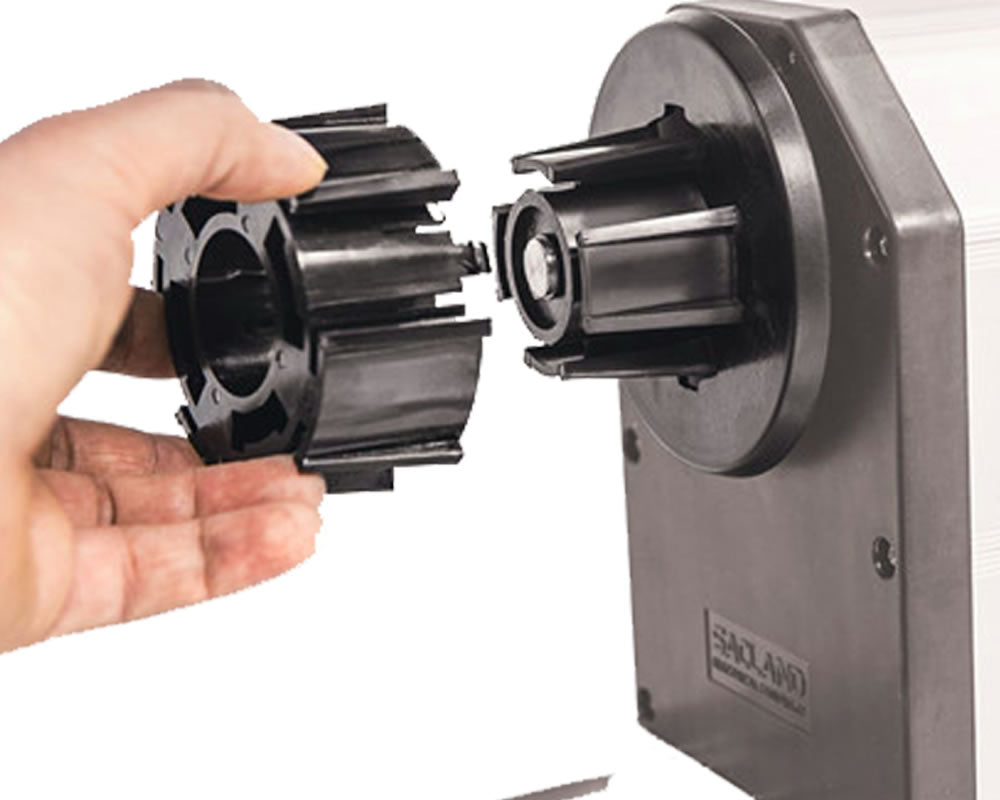

2.Plastic medium flange 2"(φ48-53mm) and 3"(φ75-80mm) are available for various paper core.

3.Universal linking slab is suitable for any printers without punching holes. Such as Roland  FJ740 / RA640 / RS640 / RF640 / VP540 / SP540 / FJ540, MUTOH VJ1938 / VJ1604 / VJ1638 / VJ1304 / 900C, MIMAKI JV33, EPSON 9100 / 9700 / GS6000 / S30680、HP、Canon....

4.Application materials: PP, adhesive sticker, transfer-paper, pictorial cloth, car sticker , wallpaper, etc....


The transportation time is usually 7-28 days

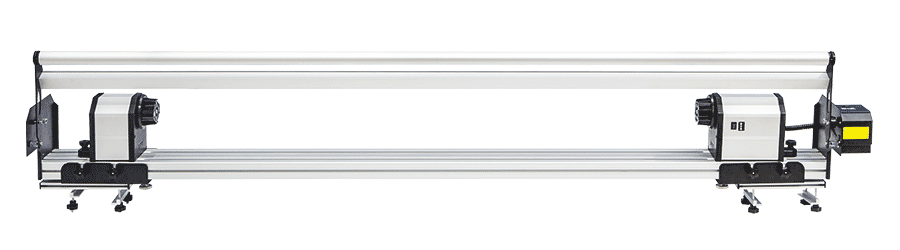

Product Introduction

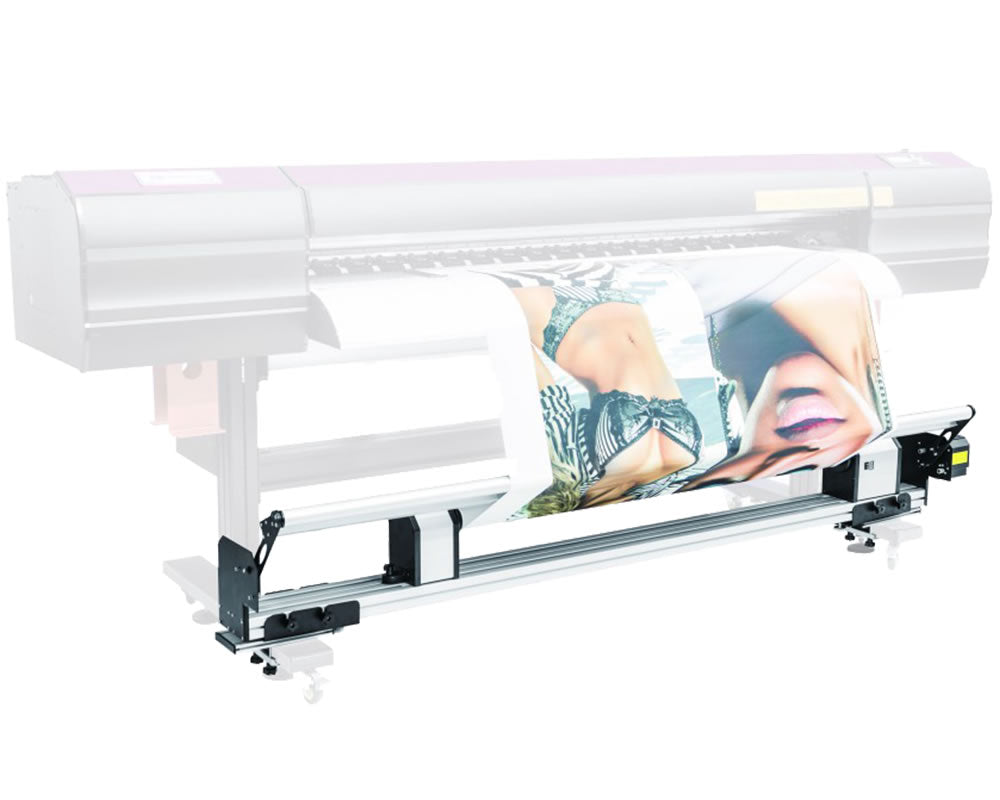

Automatic take up system T1, with inductive tension system, while the printing stop, the rolling also stops. Suit for heavy media rolling. Bearing weight ≤50KGS. Neat rolling, durable life.

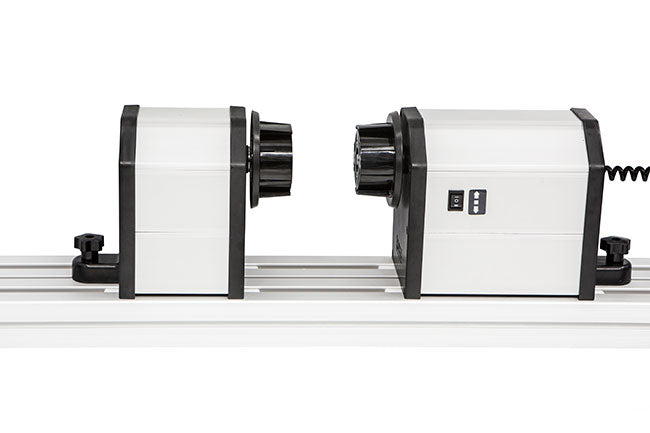

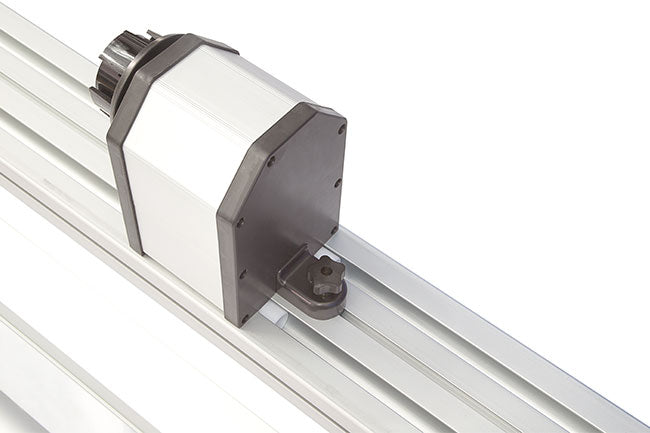

    Creative and easy body design

    Removable main parts move freely in the clute to adjust the width conveniently.

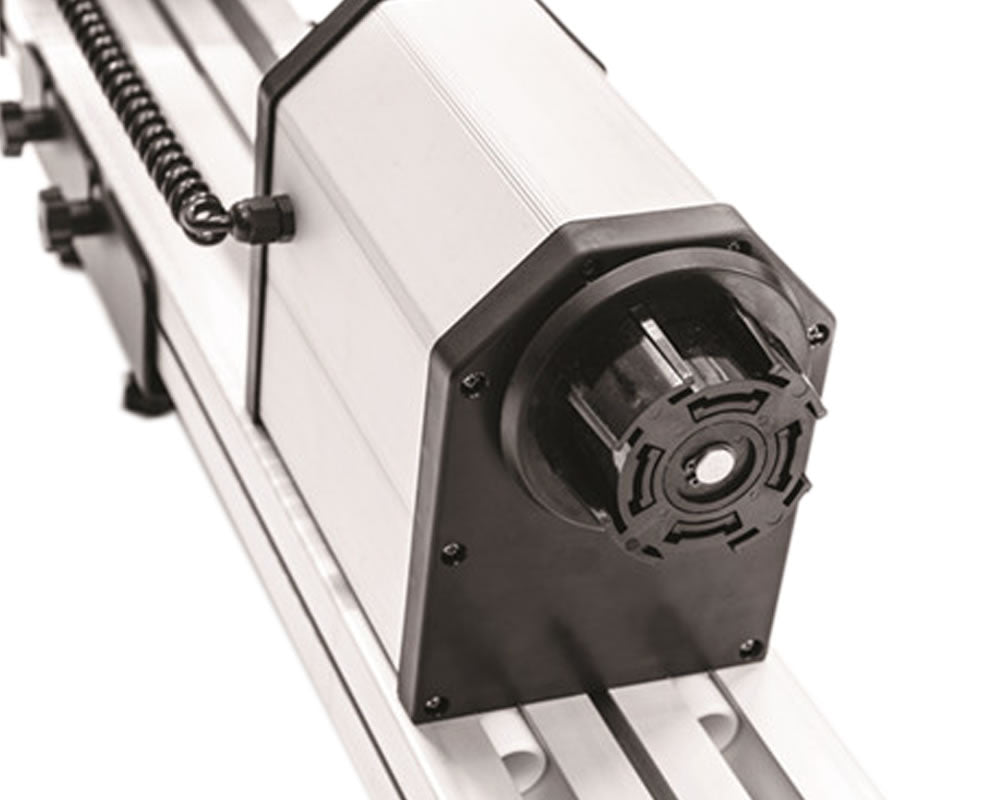

    New Plastic Axis

    New plastic axis is much stronger and wearproof than before.

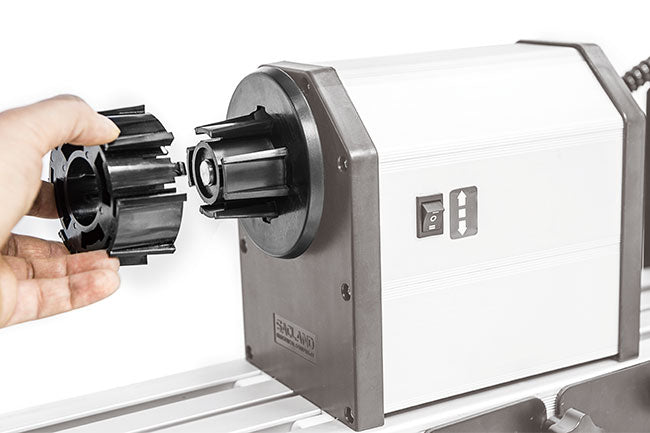

    The diameter of paper core is 2in(φ48-53mm) or 3in(φ75-80mm)


    Structure Design of Double Track

    Innovation double track structure bears maximum 50kg.

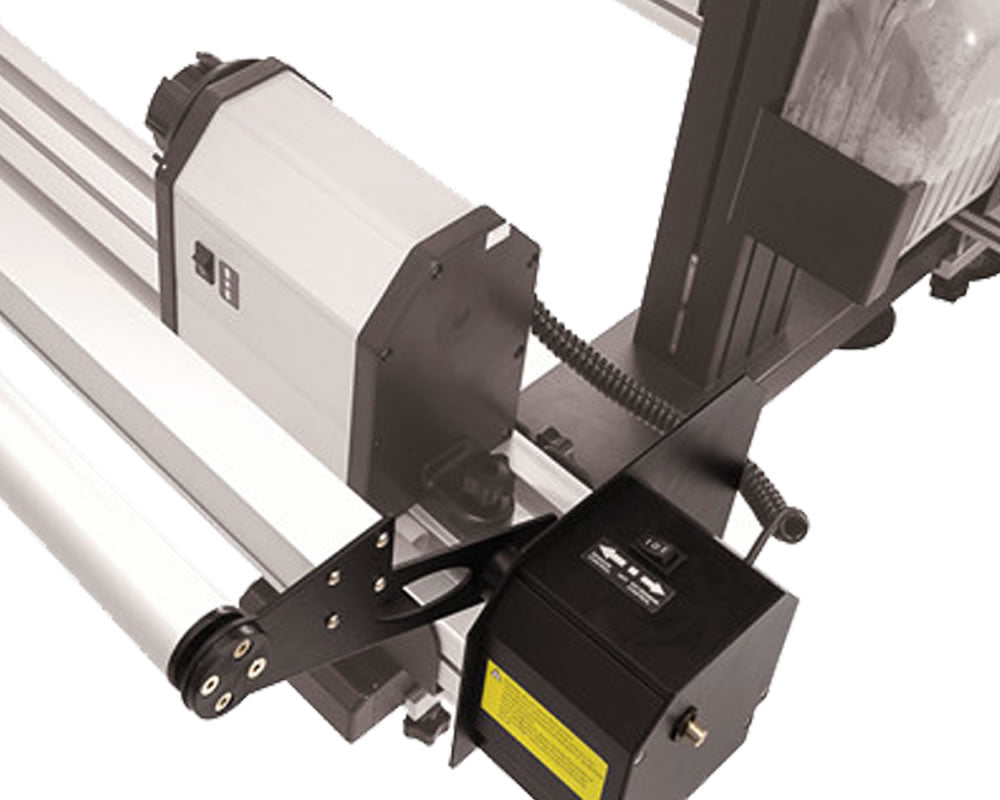

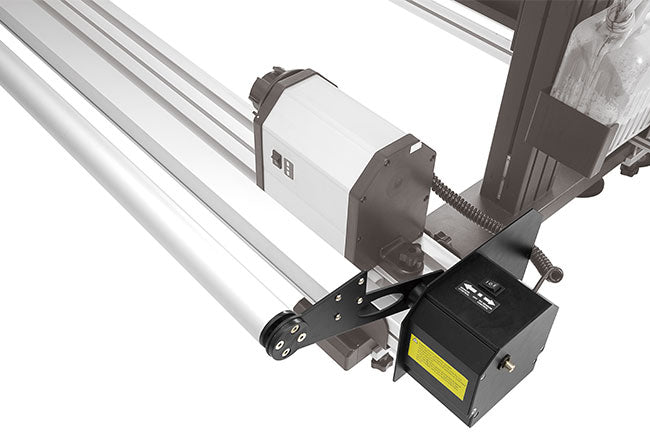

    Tension Bar and Sensor

    To achieve automatically take up, by particular tension bar and sensor.

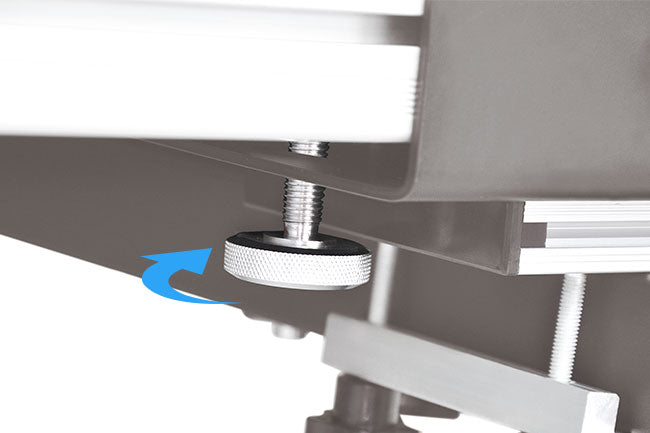

    Horizontal Adjustable Screw

    On both sides of the bottom have screw to adjust balance.


    Universal Linking Slab

    Special designed universal linking slab can be fixed directly to any printer without punching.



Aecfun-Take up System T1
Product Name Take-up System
Product Model T1
Applicable Width 54"/64"/74"(1300/1600/1800mm)
Input Voltage 100-240V
Working Voltage 24V
Working Power 36W
Paper Core Diameter 2"(Φ48-53mm) or 3"(Φ75-80mm)
Maximum Media Diameter Φ260mm
Bearing Weight 50kg
Product Packing
Carton Size Carton:54"-2300(W)x350(D)x380mm(H)
Packing Quantity 1pcs/ctn
Net Weight 25/26/29kg
Gross Weight 29/30/33kg
Product Shiping Specs
20GP(General Purpose Container) 54"-96pcs/ 64"-72pcs/ 74"-72pcs
40GP(General Purpose Container) 54"-204pcs/ 64"-180pcs/ 74"-144pcs
40HQ(High Cube Container) 54"-238pcs/ 64"-210pcs/ 74"-168pcs
Express Service Available
Product Maintenance
Certification CE Certification
Warranty 365D(exclude force majeure,aritificial factors)


1. Q: What’s the working theory of take up system T1?

A: Adopt the inductive tension structure to ensure the neat rolling.

2. Q:What kind of material can it roll up?

A:PP, adhesive sticker, transfer paper, pictorial cloth, car sticker, wallpaper, leather, flag cloth, etc.

3. Q:What’s the bearing weight?

A:≤50KG, suitable for heavy material.

4. Q:Can the take-up system T1 roll up soft film?

A:Yes,it’s best to match the feeding system F3 together. Feeding and rolling are both important due to the specificity of film.

5. Q: What’s the working voltage?

A:Working voltage: 24V; Input voltage: 100V-240V; Four plugs optional: Chinese standard, British standard, U.S. standard, E.U. standard.

6. Q:What’s the warranty?

A:12 months, warranty components: circuit board, motor.

7. Q:What’s the consumable part?

A:Motor, plastic axis.

8. Q: Is the speed of motor adjustable?

A:No,inductive rewinding, synchronized with printer.

9. Q:Is your take-up system fit for our printers?

A:universal linking slab, apply to any printer.

10.Q:Do you have CE certification?

A: Yes.

11.Q:What’s the difference between T1 and other take-up systems?

A:T1 adopts the inductive tension structure, synchronized with printer, and the winding force is balanced, without adjustment.

K3, K5, and K8 are take-up systems with damper, sometimes it is necessary to adjust the damper to strength the torque.

Refer to the comparative table.
